Description

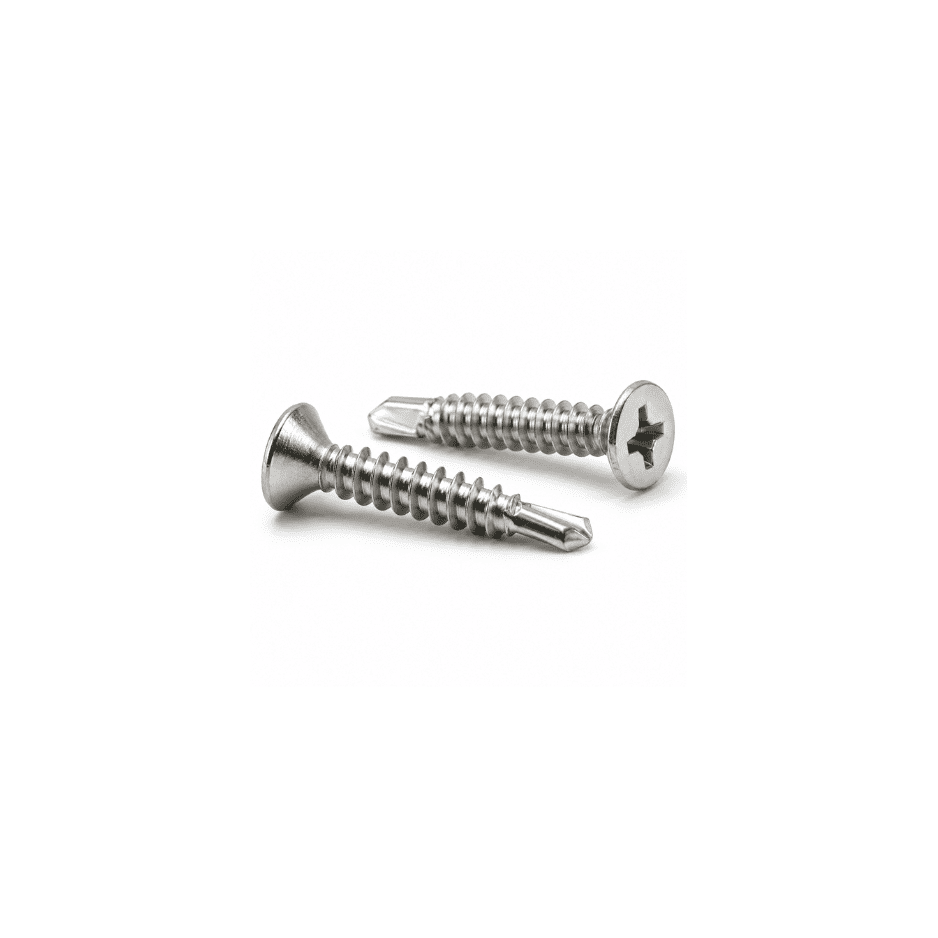

AM Steel CSK Head Self Drilling Screws combine a countersunk (flat) head with an integral drill-point tip that bores its own hole and taps its own thread in one continuous action – fastening sheet and light structural steel without the separate drill-and-tap step and without a pre-drilled pilot hole, while the tapered head sits flush with the surface. Manufactured under the AM Steel brand to DIN 7504 P (Phillips/cross-recess) and related standards, these fasteners (widely known as countersunk Tek screws or self-drillers) are the go-to fixing wherever a fast, one-step metal fixing must also finish flush and snag-free.

Because the drill point cuts through steel before the thread engages and the countersunk head then seats level, AM Steel CSK head self drilling screws are well suited to metal-to-metal fixing, cladding, metal flooring and decking, window and door fabrication, and any sheet-metal assembly where nothing can protrude above the surface. Many are supplied with ribs or nibs under the head that ream a clean countersink into the sheet as the screw seats, ensuring a truly flush finish in thin steel. The cross-recess or star drive gives fast, cam-out-resistant engagement for high-speed power driving. Self-drilling screws are specified by drill-point capacity (point sizes such as No. 2 or 3), each rated for a maximum total metal thickness it can drill through, so the point must be matched to the combined gauge of the steel being fastened. AM Steel CSK head self drilling screws are available in case-hardened carbon steel (zinc-plated) for general steel fixing, and in bi-metal or stainless steel (A2/304 and A4/316, the latter considered marine-grade) for outdoor, humid, and coastal environments where corrosion resistance is critical.

Whether you’re fixing metal cladding and flooring, fabricating windows and doors, installing flush sheet-metal panels, or handling any metal-to-metal connection that demands a fast, flush, one-step fixing, AM Steel CSK head self drilling screws deliver the drill-and-fasten speed, flush seat, and consistent quality needed for sheet and light structural steel connections. As with all AM Steel products, this self drilling screw is available in a range of sizes (typically No. 6 to No. 14 / approx. 3.5mm to 6.3mm diameter, lengths from 13mm to 50mm), in multiple drill-point capacities, drives, materials, and finishes to suit both industrial-grade and everyday fastening needs.

Key features:

• Integral drill-point tip that drills its own hole and forms its own thread in one action — no pilot hole needed
• Countersunk (flat) head that seats flush for a level, snag-free finish
• Optional ribs/nibs under the head that ream a clean countersink into thin sheet for a true flush seat
• Phillips (cross-recess) or star (Torx) drive for fast, cam-out-resistant power driving
• Manufactured to DIN 7504 P / O dimensional standards
• Drill-point capacities (e.g. No. 2, 3) matched to total metal thickness for reliable drilling
• Available in zinc-plated carbon steel, bi-metal, and stainless steel (A2/304, A4/316)
• Backed by the quality assurance of AM Steel

Ideal For

AM Steel CSK Head Self Drilling Screws are ideal for:

• Cladding and facade installers fixing metal sheet where a flush head must not protrude or catch
• Metal flooring and decking fabricators securing sheet and plate with a level, snag-free surface
• Window, door, and curtain-wall fabricators making flush metal-to-metal connections
• Sheet-metal fabricators fixing flush panels and covers without pre-drilling or separate countersinking
• Maintenance and general trades needing fast, flush metal fastening with a power driver

Choosing the Right CSK Head Self Drilling Screw

Selecting the correct CSK head self drilling screw from the AM Steel range depends on several factors:

• Material – Stainless steel (A2/304 or A4/316) or bi-metal for outdoor, humid, and coastal applications; zinc-plated carbon steel for general indoor and dry metal fixing.
• Drill-Point Capacity – Match the point number (e.g. No. 2, 3) to the total combined thickness of steel being fastened; too small a point won’t drill through, too large wastes drilling travel.
• Countersink / Flush Requirement – For a truly flush seat in thicker steel, pre-countersink the hole or choose a ribbed-head version that reams its own countersink in thin sheet.
• Size & Length – Choose a diameter and length that fully penetrates and grips the base steel while leaving adequate thread engagement beyond the fastened material.
• Drive Type – Phillips (cross-recess) for familiar, fast driving; star (Torx) for maximum cam-out resistance during high-torque power driving.
• Corrosion Environment – For humid, wet, or coastal exposure, prioritize stainless or bi-metal to resist rust and galvanic issues.

Strategies to Choose the Right Product

• Match the drill point to the steel thickness – The point number defines the maximum metal thickness the screw can drill; matching it correctly is the single most important factor for reliable self-drilling.
• Use ribbed heads for a flush seat in thin sheet – Ribs or nibs under the head ream a clean countersink as the screw seats, giving a true flush finish without a separate countersinking step.
• Match material to environment – Use stainless steel (A2/304 or A4/316) or bi-metal for outdoor, humid, or coastal work; zinc-plated carbon steel for general dry, indoor fixing.
• Drive at the right speed – Use steady, firm pressure and an appropriate driver speed so the point drills fully before the thread engages; excessive speed can burn the point or strip the thread.
• Prioritize certified standards – Look for DIN 7504 P / O compliance for guaranteed dimensional and drilling consistency.
• Consider bulk vs. individual packs – Bulk packs suit cladding, flooring, and production steel fixing; smaller packs suit repairs, servicing, or single jobs.

Mechanical Properties

AM Steel CSK Head Self Drilling Screws are manufactured to meet recognized mechanical and dimensional standards, ensuring reliability across cladding, flooring, and flush sheet-metal fixing applications:

These mechanical ratings confirm that AM Steel CSK head self drilling screws deliver fast, one-step drilling with a flush finish, suited to cladding, flooring, and sheet-metal applications – match the drill-point capacity to the total metal thickness and countersink thicker steel for the best flush seat.

Frequently Asked Questions (FAQs)

1. What is a CSK head self drilling screw used for?
It’s used for fast metal-to-metal fixing that must finish flush – cladding, metal flooring, window and door fabrication, and sheet-metal panels – drilling its own hole and forming its own thread in one action while the countersunk head seats level with the surface.

2. What does “CSK” mean on a screw?
CSK stands for countersunk – a flat, tapered head designed to sit flush with (or below) the surface when driven into a matching countersunk or reamed hole, leaving nothing protruding.

3. What does “self drilling” mean?
Self drilling means the screw has an integral drill-point tip that bores its own hole through metal and then taps its own thread in a single continuous driving action, so no separate pilot hole is required.

4. What’s the difference between a self drilling and a self tapping screw?
A self drilling (Tek) screw has a drill-point tip that bores its own hole and taps the thread in one step with no pilot hole, while a self tapping screw needs a pre-made pilot or punched hole and forms the thread only.

5. How does a countersunk self drilling screw finish flush in metal?
Many versions have ribs or nibs under the head that ream a clean countersink into thin sheet as the screw seats; in thicker steel, pre-countersinking the hole ensures the flat head sits truly level.

6. Are AM Steel CSK head self drilling screws different from generic ones?
AM Steel self drilling screws are manufactured and quality-tested under the AM Steel brand, ensuring consistent drill-point performance, thread quality, head angle, and finish across every batch, per DIN 7504 P / O.

7. What does the drill-point number (No. 2, 3) mean?
The point number indicates the screw’s drilling capacity – the maximum total thickness of steel it can drill through; a higher number generally drills through thicker combined metal, so match the point to the steel being fastened.

8. What sizes do CSK head self drilling screws come in?
AM Steel CSK head self drilling screws are available in a range of sizes, typically No. 6 to No. 14 (approx. 3.5mm to 6.3mm in diameter), with lengths from 13mm to 50mm.

9. What’s the difference between a CSK and a pan or hex head self drilling screw?
A CSK head seats flush for a level, snag-free finish; a pan head sits low but proud with a broad bearing surface; and a hex head allows higher driving torque via a socket for heavier roofing and cladding fixings.

10. Are CSK head self drilling screws corrosion-resistant?
Yes, especially AM Steel stainless steel (A2/304 or A4/316) and bi-metal versions, which resist rust in outdoor, humid, or coastal environments; zinc-plated carbon steel offers basic protection for indoor and dry conditions.

11. What tool do I need to install a CSK head self drilling screw?
A Phillips or star (Torx) bit matching the recess – fitted to a drill/driver or impact driver – is used; seat the bit fully and apply firm, steady pressure so the drill point cuts before the thread engages.

12. What is a bi-metal self drilling screw?
A bi-metal screw combines a hardened carbon-steel drill point (for reliable drilling into steel) with a stainless-steel body (for corrosion resistance), giving both drilling ability and rust protection in outdoor use.

13. What’s the difference between A2 and A4 stainless steel self drilling screws?
A2 (304) stainless offers good general corrosion resistance for most indoor and outdoor use, while A4 (316), considered marine-grade, provides superior resistance to chlorides and coastal or chemical environments.
