Description

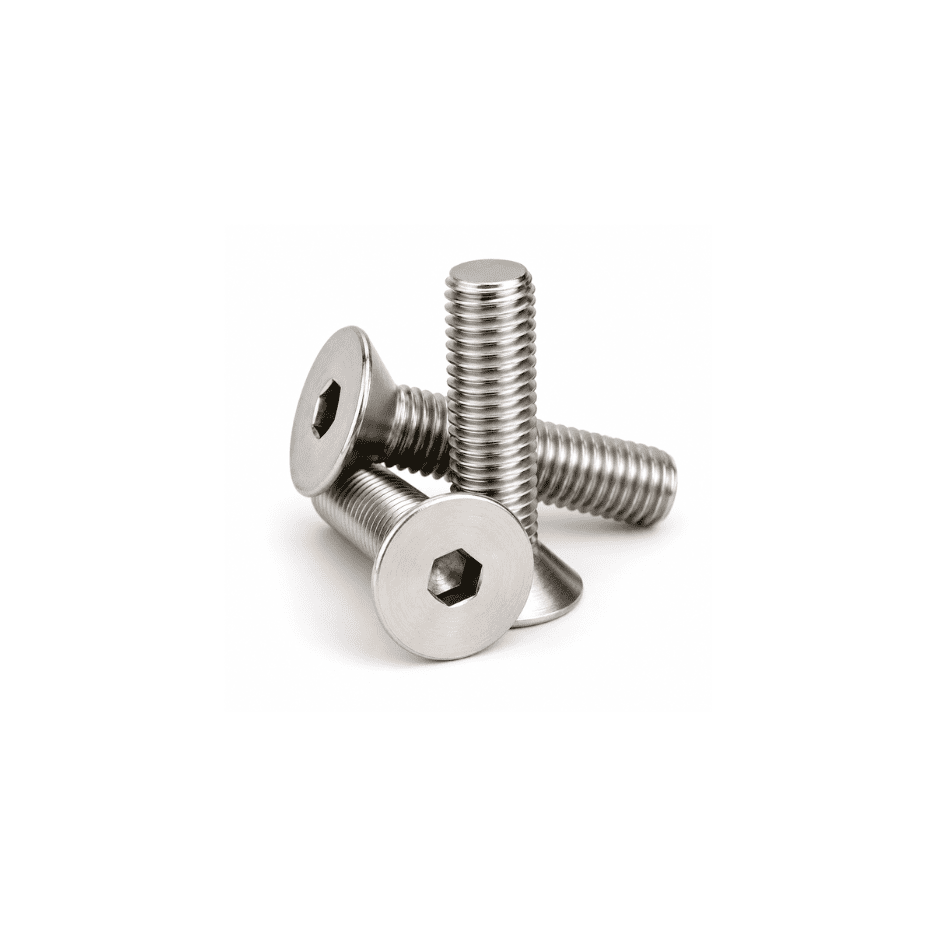

AM Steel CSK Allen Screws combine a countersunk (CSK) conical head with an internal hexagon socket drive, giving you both a clean, flush-fitting finish and a high-torque installation method. The conical underhead sits into a matching countersunk hole so the screw head finishes flush with – or slightly below – the surrounding surface, eliminating protrusions and creating a smooth, snag-free finish. Manufactured under the AM Steel brand to ISO 10642 (equivalent to DIN 7991), the internal hex socket allows a driver to apply torque directly along the fastener’s axis, avoiding the cam-out issues common with Phillips or slotted drives, especially important when driving into metal at high torque.

AM Steel CSK Allen screws are available in property class 8.8 (the standard industrial grade, comparable to imperial Grade 5), 10.9 (high-tensile, comparable to Grade 8), and 12.9 (ultra-high tensile, used in precision engineering and high-stress applications) – though due to their conical head geometry, these screws are tested to the relevant material and property requirements of ISO 898-1 rather than the same minimum ultimate tensile load test used for standard bolt heads. For corrosion resistance, AM Steel offers zinc-plated and black oxide carbon steel CSK Allen screws, as well as stainless steel options in A2 (304) and A4 (316) grades.

Whether you’re finishing a precision-machined assembly, mounting a panel where a flush surface is required, or building machinery where high torque and a clean profile both matter, AM Steel CSK Allen screws deliver dependable strength with a professional finish. As with all AM Steel products, this CSK Allen screw is available in metric sizing per ISO 10642 (and comparable ASME B18.3.5M imperial equivalents), in multiple grades and finishes to suit both industrial-grade and precision fastening needs.

Key features:

• 90-degree countersunk head for a flush, snag-free finish
• Internal hex (Allen) socket drive resists cam-out under high torque
• Available in property class 8.8, 10.9, and 12.9 steel, plus A2/A4 stainless steel
• Manufactured to ISO 10642 / DIN 7991 dimensional and mechanical standards
• Sits 0–0.2mm sub-flush for a clean industrial finish when correctly seated
• Backed by the quality assurance of AM Steel

Ideal For

AM Steel CSK Allen Screws are ideal for:

• Precision machinery and equipment manufacturers needing a flush-mounted, high-torque fastening solution
• Automotive and aerospace fabricators requiring snag-free surfaces on panels and enclosures
• Furniture and cabinetry makers wanting a clean, countersunk finish without visible protrusions
• Electronics and enclosure assembly where flush hardware improves both function and appearance
• General mechanical assembly anywhere a standard pan or hex head screw would protrude undesirably

Choosing the Right CSK Allen Screw

Selecting the correct CSK Allen screw from the AM Steel range depends on several factors:

1. Head Angle – Confirm 90° (ISO 10642/DIN 7991, common outside North America) versus 82° (ASME/ANSI standard common in North America) to match your countersunk hole and drill bit.
2. Property Class/Grade – 8.8 for standard industrial use, 10.9 for higher-strength applications, 12.9 for precision engineering or high-stress use.
3. Material – A2 (304) stainless for general corrosion resistance; A4 (316) for marine or highly corrosive environments; zinc-plated or black oxide carbon steel for cost-effective indoor use.
4. Size & Thread Pitch – Match the screw diameter and thread pitch (per ISO 10642 metric sizing) to the tapped hole.
5. Countersink Depth Match – Ensure the countersunk recess diameter and depth match the screw’s head diameter (dk) and head height (k) so the screw seats flush rather than proud or overly recessed.
6. Drive Access – Confirm sufficient clearance for a hex key or socket driver to reach and seat fully into the internal hexagon socket.

Strategies to Choose the Right Product

• Match head angle to your region’s standard – Use 90° CSK Allen screws for ISO/DIN-based designs; confirm 82° if working to North American ASME/ANSI drawings, since using the wrong countersink angle leaves the head sitting proud or unevenly seated.
• Check grade against load requirements – Use property class 10.9 or 12.9 for higher-stress precision applications; 8.8 is sufficient for general-purpose assembly.
• Match material to environment – Choose A4 (316) stainless CSK Allen screws for marine or chemical exposure; A2 (304) for general outdoor/indoor corrosion resistance; plated carbon steel for indoor, cost-sensitive use.
• Verify countersink dimensions before ordering in bulk – Confirm the recess diameter and depth match the screw’s head dimensions to avoid a proud or over-recessed finish across a production run.
• Buy in matched sets – Purchase CSK Allen screws with a matching hex key or driver bit size to avoid tooling mismatches on the assembly line.
• Consider bulk vs. individual packs – Bulk packs suit production runs and machinery assembly; smaller packs suit prototyping, furniture builds, or repairs.

Mechanical Properties

AM Steel CSK Allen Screws are manufactured to meet recognized mechanical and dimensional standards, ensuring reliability across precision engineering, machinery, and general assembly applications:

These mechanical ratings confirm that AM Steel CSK Allen screws meet ISO 10642/DIN 7991 dimensional and material standards – always verify head angle and countersink dimensions match your application before installation.

Frequently Asked Questions (FAQs)

1. What is a CSK Allen screw used for? A CSK Allen screw is used wherever a flush, snag-free surface finish is needed alongside a high-torque, cam-out-resistant installation – common in machinery, precision engineering, automotive panels, and furniture assembly.

2. What does CSK mean? CSK stands for “countersunk,” describing the conical underhead shape that sits flush with – or below – the surface of the material when fully seated in a matching countersunk hole.

3. Are AM Steel CSK Allen screws different from generic countersunk socket screws? AM Steel CSK Allen screws are manufactured and quality-tested under the AM Steel brand, ensuring consistent head geometry, thread quality, and property class compliance across every batch, per ISO 10642/DIN 7991.

4. What’s the difference between a CSK Allen screw and a flat head screw? They refer to the same fastener – “CSK screw” is common engineering shorthand, while “flat head screw” is the everyday trade term used especially in North America, both describing a countersunk-head screw with an internal hex drive.

5. What head angle should I use – 90° or 82°? Use 90° for ISO/DIN-based (metric) designs, which is standard across most of the world including Australia and Europe; use 82° for ASME/ANSI-based (imperial) designs common in North America – always match the angle to your countersink hole and drill bit.

6. Are CSK Allen screws corrosion-resistant? Yes, especially AM Steel A2 (304) or A4 (316) stainless steel CSK Allen screws, which resist rust in outdoor, marine, or corrosive environments; zinc-plated or black oxide carbon steel offers moderate protection for indoor use.

7. What sizes do CSK Allen screws come in? AM Steel CSK Allen screws are available in a range of sizes, typically M3 to M24 in metric per ISO 10642, with imperial equivalents available per ASME B18.3.5M.

8. What grade of CSK Allen screw should I use for high-stress applications? Property class 10.9 or 12.9 is recommended for higher-stress precision applications, while property class 8.8 is generally sufficient for standard industrial assembly.

9. What tools do I need to install a CSK Allen screw? A hex key (Allen wrench) or hex socket driver matching the screw’s internal socket size is required for installation and removal.

10. How deep should the countersink hole be for a CSK Allen screw? The countersink diameter should match the screw’s head diameter (dk), and the depth should match the head height (k), so the screw seats 0–0.2mm sub-flush for a clean industrial finish – too shallow leaves it proud, too deep leaves inadequate support.

11. Can CSK Allen screws be reused? Yes, as long as the threads, head, and internal hex socket aren’t damaged, worn, or rounded out, CSK Allen screws can typically be reused in non-critical applications.

12. What’s the difference between A2 and A4 stainless steel CSK Allen screws? A2 (304) stainless offers good general corrosion resistance for most indoor and outdoor use, while A4 (316) stainless provides superior resistance to chlorides and marine environments, making it better suited for coastal or high-exposure applications.

13. What is the seating torque for CSK Allen screws? Recommended seating torque varies significantly by screw size and grade – for example, roughly 1.4 N·m for an M3 up to approximately 746 N·m for an M24 – always refer to the manufacturer’s torque chart for the specific size and property class being used.
