Description

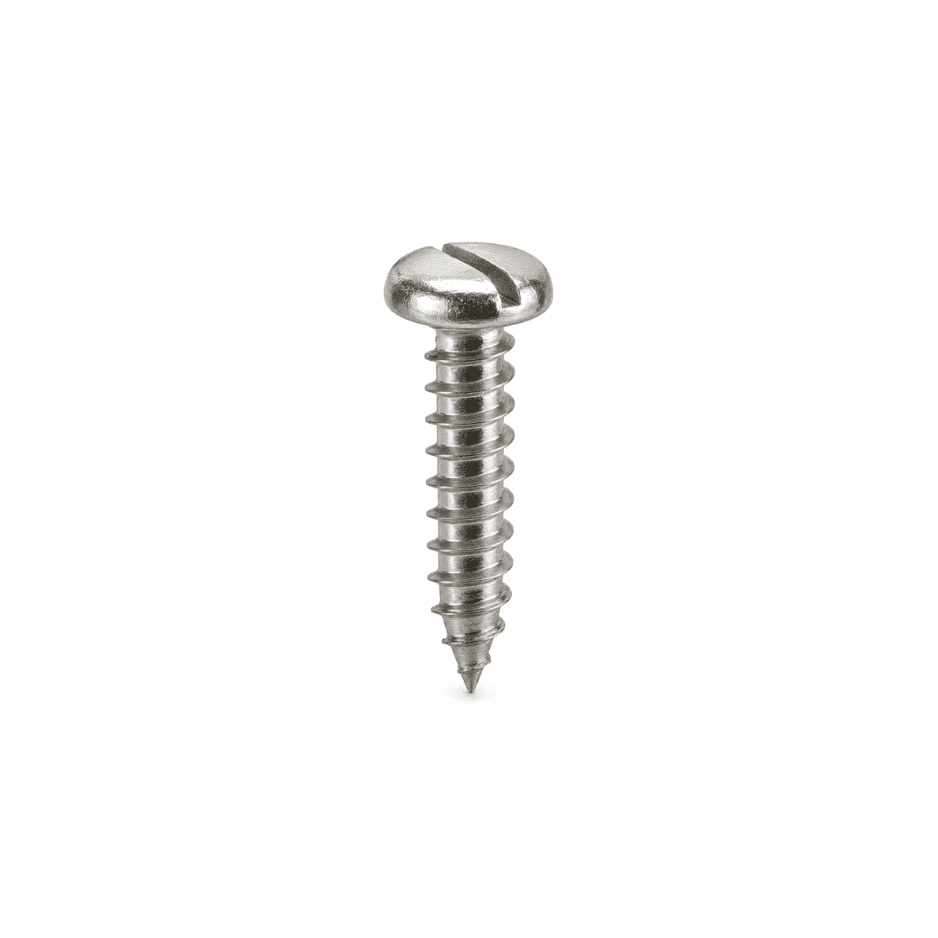

AM Steel Pan Slotted Self Tapping Screws combine a low, rounded pan head with a single straight slot drive and an aggressive, coarse thread that cuts and forms its own mating thread as it’s driven – fastening sheet metal, plastic, and thin materials without a pre-tapped hole or separate nut. Manufactured under the AM Steel brand to DIN 7971 (ISO 1481), these self-tapping screws are a dependable choice wherever a simple flat-blade drive is preferred, driven with a standard slotted screwdriver into a punched or pilot hole.

Because the thread taps directly into the base material, AM Steel pan slotted self tapping screws are well suited to sheet-metal fabrication, electrical fittings, terminal and earthing connections, nameplates, and general light fixing. The pan head provides a broad, flat bearing surface that spreads load and sits neatly against the surface without needing a countersink, while the single slot gives straightforward hand-driven engagement – favoured in electrical and terminal work where a flat-blade driver is standard and controlled, low-speed tightening is preferred. They’re offered with Type AB thread (a sharp gimlet point for thin sheet, plastic, and soft materials) or Type C thread (a blunt machine-screw-style point for thicker or harder stock), each self-forming its thread for a tight, secure hold. AM Steel pan slotted self tapping screws are available in case-hardened carbon steel (zinc-plated or black finish) for general indoor fabrication, and in stainless steel (A2/304 and A4/316, the latter considered marine-grade) for outdoor, humid, or corrosion-prone environments.

Whether you’re fabricating sheet-metal panels, wiring electrical fittings and terminals, fixing nameplates and labels, or handling general light-gauge assembly, AM Steel pan slotted self tapping screws deliver the simple, self-forming grip and consistent quality needed for thin-material and sheet-metal connections. As with all AM Steel products, this self tapping screw is available in a range of metric self-tapping sizes (typically ST2.2 to ST6.3 per ISO 1478, lengths from 6mm to 50mm), in multiple thread forms, materials, and finishes to suit both industrial-grade and everyday fastening needs.

Key features:

• Coarse, self-tapping thread that forms its own mating thread in sheet metal, plastic, and thin materials
• Low, rounded pan head with a broad flat bearing surface that spreads load without a countersink
• Single straight slot drive for simple flat-blade screwdriver engagement
• Available in Type AB (sharp point) and Type C (blunt point) thread forms
• Manufactured to DIN 7971 / ISO 1481 dimensional standards
• Available in case-hardened carbon steel (zinc-plated, black) and stainless steel (A2/304, A4/316)
• Backed by the quality assurance of AM Steel

Ideal For

AM Steel Pan Slotted Self Tapping Screws are ideal for:

• Sheet-metal fabricators fastening panels, brackets, and enclosures into punched or pilot holes without pre-tapping
• Electricians and terminal-fitting installers making earthing, terminal, and nameplate connections with a standard flat-blade driver
• Nameplate, label, and signage fixing needing a simple, low-cost slotted fixing in thin material
• Appliance and general product assembly where hand-driven, controlled tightening is preferred
• DIY and maintenance users needing a quick, reliable slotted screw for sheet metal, plastic, and light-gauge connections

Choosing the Right Pan Slotted Self Tapping Screw

Selecting the correct pan slotted self tapping screw from the AM Steel range depends on several factors:

• Material – Stainless steel (A2/304 or A4/316) for outdoor, humid, or corrosion-prone applications; case-hardened carbon steel for general indoor sheet-metal and fittings work.
• Thread Form – Type AB (sharp gimlet point) for thin sheet, plastic, and soft materials; Type C (blunt machine-screw point) for thicker or harder stock.
• Drive Suitability – A single slot suits hand-driven, controlled tightening (as in electrical work); for high-speed power driving, a cross or star recess resists cam-out better.
• Size & Length – Choose a diameter and length that gives full thread engagement through the base material without excessive protrusion on the reverse side.
• Pilot Hole Size – Match the pilot or punched hole to the screw’s root diameter – too small risks stripping or breakage, too large weakens the grip.
• Base Material Thickness – Confirm the thread form and length suit the gauge of sheet or thickness of plastic being fastened.

Strategies to Choose the Right Product

• Use slotted for hand-driven, controlled work – A single slot suits electrical, terminal, and light assembly; for power-driven production runs, a Phillips or star drive reduces cam-out and bit slip.
• Match the thread form to the material – Use Type AB for thin sheet and plastic; Type C for thicker or harder stock where a finer, machine-style thread grips better.
• Get the pilot hole right – Size the pilot to the screw’s root diameter to prevent stripping, splitting, and screw breakage.
• Match material to environment – Use stainless steel (A2/304 or A4/316) for outdoor, humid, or coastal work; case-hardened carbon steel for general dry, indoor fabrication.
• Prioritize certified standards – Look for DIN 7971 / ISO 1481 compliance for guaranteed dimensional and thread consistency.
• Consider bulk vs. individual packs – Bulk packs suit production fabrication and repeat assembly; smaller packs suit repairs, servicing, or single jobs.

Mechanical Properties

AM Steel Pan Slotted Self Tapping Screws are manufactured to meet recognized mechanical and dimensional standards, ensuring reliability across sheet-metal, electrical, and general light-assembly applications:

These mechanical ratings confirm that AM Steel pan slotted self tapping screws deliver a simple, self-forming hold suited to sheet-metal, electrical, and general light-assembly applications – size the pilot hole to the screw’s root diameter for best results and to reduce stripping risk.

Frequently Asked Questions (FAQs)

1. What is a pan slotted self tapping screw used for?
It’s used to fasten sheet metal, plastic, and thin materials – panels, electrical fittings, terminals, and nameplates – forming its own mating thread as it’s driven with a standard flat-blade slotted screwdriver, needing no separate nut.

2. Why choose a slotted drive over a Phillips or star drive?
A single slot suits hand-driven, controlled tightening – common in electrical and terminal work where a flat-blade driver is standard; Phillips and star drives are preferred for high-speed power driving because they resist cam-out better.

3. Are AM Steel pan slotted self tapping screws different from generic ones?
AM Steel self tapping screws are manufactured and quality-tested under the AM Steel brand, ensuring consistent thread quality, point sharpness, slot dimensions, and finish across every batch, per DIN 7971 / ISO 1481.

4. Do I need to drill a pilot hole for a slotted self tapping screw?
Usually yes – a pilot or punched hole sized to the screw’s root diameter is recommended in metal and harder materials to prevent stripping, splitting, and breakage; some thin or soft materials accept the sharp point without pre-drilling.

5. What’s the difference between Type AB and Type C self tapping screws?
Type AB has a sharp gimlet point suited to thin sheet, plastic, and soft materials, while Type C has a blunt machine-screw-style point with a finer thread suited to thicker or harder stock.

6. What sizes do pan slotted self tapping screws come in?
AM Steel pan slotted self tapping screws are available in a range of sizes, typically ST2.2 to ST6.3 in metric self-tapping designation, with lengths from 6mm to 50mm, per ISO 1478.

7. What’s the difference between a pan slotted and a pan Phillips self tapping screw?
Both share the same pan head and self-tapping thread; the difference is the drive – a single straight slot for flat-blade drivers versus a cross-recess Phillips for quicker, cam-out-resistant driving during power assembly.

8. What’s the difference between a self tapping and a self drilling screw?
A self tapping screw needs a pre-made pilot hole and forms the thread only, while a self drilling (Tek) screw has a drill-point tip that bores its own hole and taps the thread in a single action, needing no pilot hole.

9. Are pan slotted self tapping screws corrosion-resistant?
Yes, especially AM Steel stainless steel versions (A2/304 or A4/316), which resist rust in outdoor, humid, or coastal environments; zinc-plated carbon steel offers basic protection for indoor and dry conditions.

10. What tool do I need to install a pan slotted self tapping screw?
A flat-blade (slotted) screwdriver matching the slot width and length is used – a correctly sized blade seats fully in the slot to avoid slipping out and burring the head.

11. Can slotted self tapping screws be used in plastic?
Yes – with a correctly sized pilot hole, self tapping screws (particularly sharp Type AB) form a secure thread in many plastics; avoid overtightening, which can strip the formed thread in softer plastics.

12. Can pan slotted self tapping screws be reused?
They can often be reinstalled into the same formed thread if it isn’t stripped, though repeated removal weakens the hold; for a loose hole, a slightly larger-diameter screw restores grip.

13. What’s the difference between A2 and A4 stainless steel self tapping screws?
A2 (304) stainless offers good general corrosion resistance for most indoor and outdoor use, while A4 (316), considered marine-grade, provides superior resistance to chlorides and coastal or chemical environments.
