Description

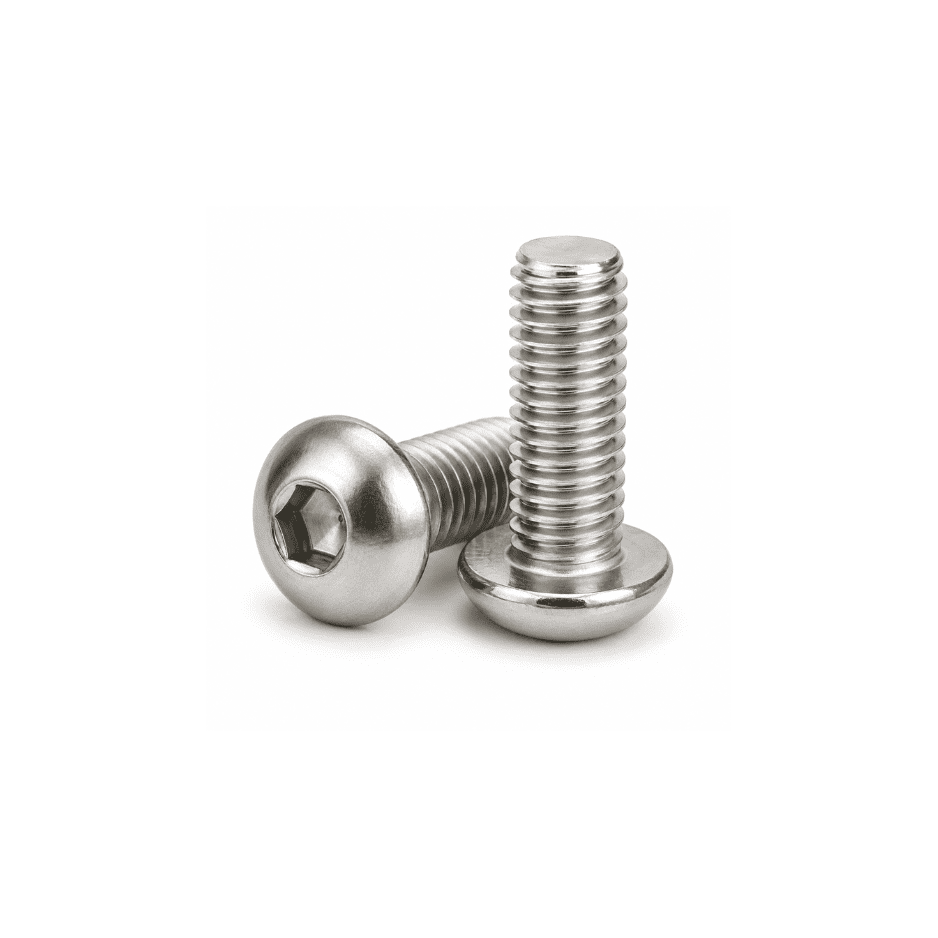

AM Steel Button Head Allen Screws combine a low, rounded (domed) head with an internal hexagon socket drive, giving a clean, finished look while still allowing controlled, high-torque tightening with a standard Allen key or hex bit. Manufactured under the AM Steel brand to ISO 7380, these fasteners (widely known as button head socket cap screws, button head cap screws, or BHCS) are the go-to choice wherever a flush-ish, tamper-neat finish and reduced head clearance matter more than the maximum clamping force of a full-height socket cap screw.

Because the internal hex socket allows precise driving with a hex key, hex bit, or driver – even in recessed or crowded assemblies – AM Steel button head Allen screws are well suited to enclosures, panels, brackets, jigs, and machine components where the head sits close to the surface and won’t snag. The broad, low-profile head also spreads bearing load over a wider area than a standard cap screw, making it useful on softer materials, slotted channels, and thin sheet where a smaller head might pull through. AM Steel button head Allen screws are available in high-tensile alloy steel (typically grade 10.9/12.9, in black oxide or zinc-plated finishes) for general machinery and equipment, and in stainless steel (A2/304 and A4/316, the latter considered marine-grade) for outdoor, hygienic, and corrosion-prone environments.

Whether you’re assembling machinery, mounting brackets and covers, building enclosures and control panels, or handling general mechanical fastening where appearance and clearance count, AM Steel button head Allen screws deliver the clean finish, controlled torque, and consistent quality needed for precision assembly. As with all AM Steel products, this button head Allen screw is available in metric sizing (M3 to M16 per ISO 7380, with common lengths from 5mm to 60mm), in multiple grades, materials, and finishes to suit both industrial-grade and everyday fastening needs.

Key features:

• Low-profile domed (button) head for a clean, finished appearance and reduced clearance
• Internal hexagon (Allen) socket for controlled, high-torque driving in tight or recessed spaces
• Manufactured to ISO 7380 dimensional standards
• Available in high-tensile alloy steel (grade 10.9/12.9) and stainless steel (A2/304, A4/316)
• Wide head bearing surface that spreads load and resists pull-through on soft or thin materials
• Backed by the quality assurance of AM Steel

Ideal For

AM Steel Button Head Allen Screws are ideal for:

• Machine builders and equipment manufacturers fastening covers, panels, and components where a low-profile head is needed
• Enclosure, cabinet, and control-panel assembly requiring a clean finished look with minimal head clearance
• Bracket, mount, and fixture mounting where the wide head spreads load and resists pull-through
• Furniture, fixtures, and consumer product assembly where appearance and a smooth, snag-free head matter
• General mechanical and maintenance fastening wherever a rounded, tamper-neat socket-drive screw is preferred over a hex or slotted head

Choosing the Right Button Head Allen Screw

Selecting the correct button head Allen screw from the AM Steel range depends on several factors:

• Material – Stainless steel (A2/304 or A4/316) for outdoor, marine, hygienic, or corrosion-prone applications; high-tensile alloy steel (grade 10.9/12.9) for general machinery and higher-load indoor use.
• Size & Length – Choose a diameter and length that provides adequate thread engagement into the tapped hole or nut, factoring in the combined thickness of the parts being fastened.
• Head Clearance & Appearance – Confirm the low-profile button head suits the clearance and finished look required; where maximum strength is critical, a standard socket cap screw may be more appropriate.
• Load Requirement – Button heads carry less clamping load than full-height socket cap screws; match the grade and size to the joint’s tension demands.
• Drive Size – Ensure the hex key or bit matches the internal socket size and that the tool can fully engage in the available space.
• Thread Type – Confirm coarse vs. fine metric thread compatibility with the mating tapped hole or nut.

Strategies to Choose the Right Product

• Match head style to the job – Use button heads for a clean, low-clearance finish; switch to a standard socket cap screw when maximum clamping force is the priority.
• Match material to environment – Use stainless steel (A2/304 or A4/316) for outdoor, marine, or washdown environments; alloy steel for general dry, indoor machinery.
• Confirm the drive size – Check the required Allen key / hex bit size before buying, especially for recessed or crowded assemblies where tool access is limited.
• Verify thread pitch – Confirm coarse or fine metric thread to ensure a correct match with the tapped hole or nut.
• Prioritize certified standards – Look for ISO 7380 compliance for guaranteed dimensional and mechanical consistency.
• Consider bulk vs. individual packs – Bulk packs suit production assembly and repeat builds; smaller packs suit repairs, maintenance, or single jobs.

Mechanical Properties

AM Steel Button Head Allen Screws are manufactured to meet recognized mechanical and dimensional standards, ensuring reliability across machinery, enclosure, and general assembly applications:

These mechanical ratings confirm that AM Steel button head Allen screws deliver reliable, controlled-torque fastening suited to machinery, enclosure, and general assembly applications – choose a standard socket cap screw where maximum clamping strength is required.

Frequently Asked Questions (FAQs)

1. What is a button head Allen screw used for?
A button head Allen screw is used for general machine and equipment assembly – fastening covers, panels, brackets, and enclosures – wherever a low-profile, rounded head with a clean finish and reduced clearance is preferred, driven with an Allen key or hex bit.

2. What’s the difference between a button head and a socket cap screw?
A button head has a low, domed head with a wider bearing surface and a cleaner finished look, while a standard socket cap screw has a taller cylindrical head that allows deeper socket engagement and higher clamping strength for high-tension joints.

3. Are AM Steel button head Allen screws different from generic button head screws?
AM Steel button head Allen screws are manufactured and quality-tested under the AM Steel brand, ensuring consistent head dimensions, socket depth, thread quality, and finish across every batch, per ISO 7380.

4. What standard are button head Allen screws made to?
AM Steel button head Allen screws are manufactured to ISO 7380, the recognized standard governing the dimensions of hexagon socket button head screws.

5. Are button head Allen screws as strong as socket cap screws?
No – because the button head is shallower, it offers a smaller socket for driving and generally lower clamping strength than a full-height socket cap screw; use a socket cap screw where maximum tension or torque is required.

6. What sizes do button head Allen screws come in?
AM Steel button head Allen screws are available in a range of sizes, typically M3 to M16 in metric, with common lengths from 5mm to 60mm, per ISO 7380.

7. Are button head Allen screws corrosion-resistant?
Yes, especially AM Steel stainless steel versions (A2/304 or A4/316), which resist rust in outdoor, marine, or washdown environments; black oxide and zinc-plated alloy steel offer basic protection for indoor and dry conditions.

8. What tool do I need to install a button head Allen screw?
An Allen key (hex key) or hex bit matching the internal socket size is used, since these screws are driven through an internal hexagon socket rather than an external head.

9. Why choose a button head instead of a countersunk or hex head screw?
A button head sits low with a smooth, rounded profile – cleaner and less snag-prone than a hex head, and without needing the countersunk recess that a flat head requires – making it ideal where appearance, clearance, and a flush-ish finish matter.

10. What’s the difference between black oxide, zinc-plated, and stainless button head screws?
Black oxide and zinc-plated alloy steel offer basic corrosion resistance at lower cost for indoor use, while stainless steel (A2/304 or A4/316) provides superior long-term durability and rust resistance in outdoor, marine, or hygienic applications.

11. Can button head Allen screws be reused?
Yes, in most general assembly applications they can be removed and reinstalled, provided the internal socket is not rounded out and the thread remains undamaged – always seat the hex key fully to avoid stripping the drive.

12. What’s the difference between A2 and A4 stainless steel button head screws?
A2 (304) stainless offers good general corrosion resistance for most indoor and outdoor use, while A4 (316), considered marine-grade, provides superior resistance to chlorides and coastal or chemical environments.

13. Do button head Allen screws come in coarse and fine thread?
Yes, they are commonly available in both coarse and fine metric thread pitches – confirm the required pitch to ensure a correct match with the mating tapped hole or nut.
