Description

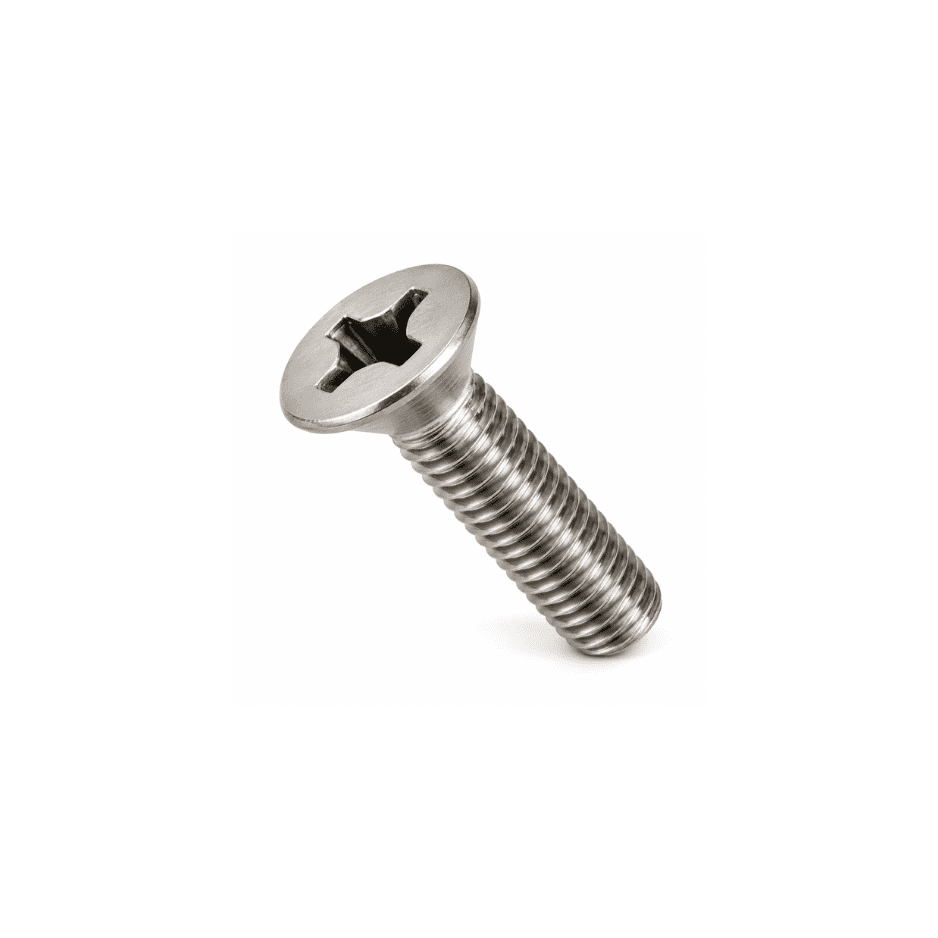

AM Steel CSK Phillips Machine Screws feature a flat-topped, cone-shaped countersunk head with a head angle of approximately 90 degrees, combined with a Phillips (cross-recess) drive for fast, self-centering installation. Manufactured under the AM Steel brand to DIN 965 (with ISO 7046 as its equivalent international standard), these fully threaded machine screws are designed to sit flush with the mating surface once seated in a matching countersunk hole, giving a clean, professional finish alongside quick, slip-resistant driving.

A detail worth noting for precision or small-diameter work: metric CSK Phillips screws use a 90° head angle, while the North American inch equivalent (per ANSI/ASME B18.6.3) uses an 82° angle – this difference means an M2 metric screw and a 2-56 UNC screw are not directly interchangeable, since they differ in both thread pitch and head diameter (the 90° metric head typically produces a smaller head diameter for a comparable size). Always confirm metric versus inch requirements before specifying or substituting.

AM Steel CSK Phillips machine screws are available in zinc-plated steel (property class 4.8) and stainless steel (A2/304, A4/316), giving you flexibility to match strength, corrosion resistance, and budget needs. These screws are intended for metal-to-metal applications with a pre-drilled clearance hole and matching countersunk recess, and are typically supplied fully threaded with a blunt point. Whether you’re assembling electronics, precision instruments, automotive components, or general machinery, AM Steel CSK Phillips machine screws provide a dependable, flush-fitting fastening solution. As with all AM Steel products, this CSK Phillips machine screw is available in metric sizing (M1.6 to M10 per DIN 965/ISO 7046), in multiple grades, materials, and finishes to suit both industrial-grade and precision fastening needs.

Key features:

• Flat countersunk head (~90° angle) for a flush, snag-free finish
• Phillips (cross-recess) drive for fast, self-centering installation
• Manufactured to DIN 965 / ISO 7046 dimensional standards
• Available in zinc-plated steel (4.8) and stainless steel (A2/304, A4/316)
• Fully threaded with a blunt point, standard configuration
• Backed by the quality assurance of AM Steel

 ideal for:

• Electronics and precision instrument assemblers needing a flush, low-profile fastener with fast installation
• Automotive and equipment fabricators requiring a clean, snag-free surface on panels and housings
• General machine and equipment assemblers using powered drivers where self-centering reduces cam-out
• Cabinetry and furniture hardware makers wanting a countersunk, flush finish
• General maintenance and repair work wherever a flush-fitting, fast-install machine screw is needed

Choosing the Right CSK Phillips Machine Screw

Selecting the correct CSK Phillips machine screw from the AM Steel range depends on several factors:

1. Material – Stainless steel (A2/304 or A4/316) for corrosion resistance in outdoor or washdown environments; zinc-plated steel for general indoor cost-effective use.
2. Head Angle Match – Confirm the countersunk hole matches the ~90° head angle (metric standard) and don’t assume interchangeability with 82° inch-series (UNC) countersunk screws.
3. Size & Thread Pitch – Match the screw diameter and thread pitch (metric per DIN 965/ISO 7046, M1.6 to M10) to the tapped hole, remembering length is measured overall, including the head.
4. Pre-Drilled Hole Sizing – Ensure the clearance hole is sized slightly larger than the screw’s major thread diameter for proper metal-to-metal fit.
5. Driver Type Compatibility – Confirm the correct Phillips bit size is available for consistent, slip-free driving, especially in automated or powered-driver assembly.
6. Finish Requirements – Choose plain or plated steel for hidden assemblies; passivated stainless for corrosion resistance and appearance where visible.

Strategies to Choose the Right Product

• Never assume metric and inch countersunk screws are interchangeable – Always confirm whether M2 (metric, 90°) or 2-56 UNC (inch, 82°) is required, since thread pitch and head diameter both differ.
• Match material to environment – Choose stainless steel (A2/304 or A4/316) for corrosion resistance; zinc-plated steel for general indoor use.
• Choose Phillips drive for speed and automation – Use CSK Phillips machine screws over slotted CSK screws wherever powered drivers or automated assembly lines are involved.
• Verify countersink angle compatibility – Confirm the countersunk hole is machined to match the 90° metric head angle to avoid a proud or poorly seated fit.
• Buy in matched sets – Purchase CSK Phillips machine screws with compatible nuts or ensure tapped holes match the thread pitch precisely.
• Consider bulk vs. individual packs – Bulk packs suit electronics or precision assembly production runs; smaller packs suit prototyping or repairs.

Mechanical Properties

AM Steel CSK Phillips Machine Screws are manufactured to meet recognized mechanical and dimensional standards, ensuring reliability across electronics, precision assembly, and general machine applications:

These mechanical ratings confirm that AM Steel CSK Phillips machine screws are suited to general metal-to-metal assembly where a flush finish and fast, self-centering installation are both priorities.

Frequently Asked Questions (FAQs)

1. What is a CSK Phillips machine screw used for? A CSK Phillips machine screw is used for general metal-to-metal assembly wherever the screw head needs to sit flush with the surrounding surface and fast, self-centering installation is preferred – common in electronics, precision instruments, and machine assembly.

2. What’s the difference between DIN 965 and ISO 7046? ISO 7046 is the international standard equivalent to the original German DIN 965 standard for Phillips flat countersunk machine screws – the two are functionally interchangeable in dimensions and specification.

3. Are AM Steel CSK Phillips screws different from generic countersunk Phillips screws? AM Steel CSK Phillips machine screws are manufactured and quality-tested under the AM Steel brand, ensuring consistent head geometry, thread quality, and grade compliance across every batch, per DIN 965/ISO 7046.

4. What head angle do metric CSK Phillips machine screws use? Metric CSK Phillips machine screws use a head angle of approximately 90 degrees, compared to the 82-degree angle used by the North American inch-series equivalent (ANSI/ASME B18.6.3).

5. Can I substitute an M2 CSK Phillips screw for a 2-56 UNC countersunk screw? No – M2 (metric, 0.4mm pitch, 90° head) and 2-56 UNC (inch, roughly 0.45mm pitch equivalent, 82° head) differ in both thread pitch and head diameter, so they are not directly interchangeable; always verify the mating hole and component specification before substituting.

6. Are CSK Phillips machine screws corrosion-resistant? Yes, especially AM Steel stainless steel versions (A2/304 or A4/316), which resist rust in outdoor, washdown, or corrosive environments; zinc-plated steel offers moderate protection for general indoor use.

7. What sizes do CSK Phillips machine screws come in? AM Steel CSK Phillips machine screws are available in a range of sizes, typically M1.6 to M10 in metric, with lengths up to approximately 38mm, per DIN 965/ISO 7046.

8. How is the length of a CSK Phillips machine screw measured? Length is measured as the overall length, including the head, rather than from under the head as with screws that sit above the surface – this should be accounted for when specifying the correct size.

9. What tools do I need to install a CSK Phillips machine screw? A Phillips screwdriver (Form H or Z cross-recess) matching the screw’s recess size, or a powered driver with a matching Phillips bit, is used for installation.

10. What size pre-drilled hole do I need for a CSK Phillips machine screw? The clearance hole should be slightly larger in diameter than the screw’s major thread diameter, with the countersunk recess machined to match the screw’s head angle and diameter.

11. Can CSK Phillips machine screws be reused? Yes, as long as the threads and Phillips recess aren’t damaged, stripped, or worn, CSK Phillips machine screws can typically be reused in non-critical applications.

12. What’s the difference between A2 and A4 stainless steel CSK Phillips screws? A2 (304) stainless offers good general corrosion resistance for most indoor and outdoor use, while A4 (316) stainless provides superior resistance to chlorides and marine or washdown environments.

13. Are CSK Phillips machine screws suitable for structural or high-torque applications? No – these are general-purpose machine screws (property class 4.8) intended for light-to-moderate load, flush-fitting applications rather than high-torque or structural fastening, where a socket head cap screw or hex bolt would be more appropriate.
