Description

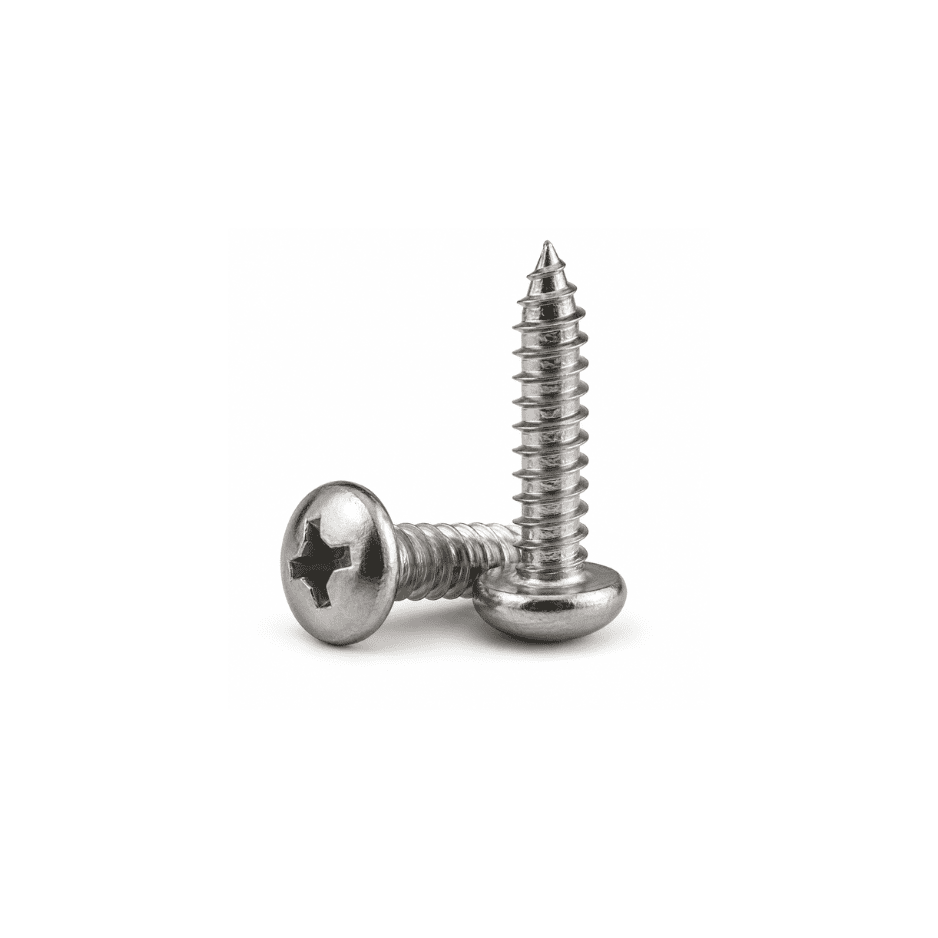

AM Steel Pan Phillips Self Tapping Screws combine a low, rounded pan head with a cross-recess Phillips drive and an aggressive, coarse thread that cuts and forms its own mating thread as it’s driven – eliminating the need for a pre-tapped hole or a separate nut in sheet metal, plastic, and thin materials. Manufactured under the AM Steel brand to DIN 7981 (ISO 7049), these self-tapping screws are a workshop staple wherever components must be fastened quickly and securely into a simple pilot or punched hole, driven with a Phillips screwdriver or bit.

Because the thread taps directly into the base material, AM Steel pan Phillips self tapping screws are well suited to sheet-metal fabrication, electrical and electronic enclosures, HVAC ductwork, appliance assembly, signage, and general light fixing. The pan head provides a broad, flat bearing surface that spreads load and sits neatly against the surface without needing a countersink, while the Phillips recess gives quick, familiar driver engagement for high-speed assembly. They’re offered with Type AB thread (a sharp gimlet point for thin sheet, plastic, and soft materials) or Type C thread (a blunt machine-screw-style point for thicker or harder stock), each self-forming its thread for a tight, vibration-resistant hold. AM Steel pan Phillips self tapping screws are available in case-hardened carbon steel (zinc-plated or black finish) for general indoor fabrication, and in stainless steel (A2/304 and A4/316, the latter considered marine-grade) for outdoor, humid, or corrosion-prone environments.

Whether you’re fabricating sheet-metal panels, assembling enclosures and control boxes, fixing ductwork, mounting signage, or handling general light-gauge assembly, AM Steel pan Phillips self tapping screws deliver the fast, self-forming grip and consistent quality needed for thin-material and sheet-metal connections. As with all AM Steel products, this self tapping screw is available in a range of metric self-tapping sizes (typically ST2.2 to ST6.3 per ISO 1478, lengths from 6mm to 50mm), in multiple thread forms, materials, and finishes to suit both industrial-grade and everyday fastening needs.

Key features:

• Coarse, self-tapping thread that forms its own mating thread in sheet metal, plastic, and thin materials
• Low, rounded pan head with a broad flat bearing surface that spreads load without a countersink
• Cross-recess Phillips drive for fast, familiar screwdriver or bit engagement
• Available in Type AB (sharp point) and Type C (blunt point) thread forms
• Manufactured to DIN 7981 / ISO 7049 dimensional standards
• Available in case-hardened carbon steel (zinc-plated, black) and stainless steel (A2/304, A4/316)
• Backed by the quality assurance of AM Steel

Ideal For

AM Steel Pan Phillips Self Tapping Screws are ideal for:

• Sheet-metal fabricators fastening panels, brackets, and enclosures into punched or pilot holes without pre-tapping
• Electrical and electronics assemblers fixing control boxes, junction boxes, covers, and mounting plates
• HVAC and ductwork installers securing thin-gauge sheet, flanges, and fittings
• Appliance, signage, and general product assembly requiring fast, self-forming fixings in thin material
• DIY and maintenance users needing a quick, reliable screw for sheet metal, plastic, and light-gauge connections

Choosing the Right Pan Phillips Self Tapping Screw

Selecting the correct pan Phillips self tapping screw from the AM Steel range depends on several factors:

• Material – Stainless steel (A2/304 or A4/316) for outdoor, humid, or corrosion-prone applications; case-hardened carbon steel for general indoor sheet-metal and enclosure work.
• Thread Form – Type AB (sharp gimlet point) for thin sheet, plastic, and soft materials; Type C (blunt machine-screw point) for thicker or harder stock.
• Size & Length – Choose a diameter and length that gives full thread engagement through the base material without excessive protrusion on the reverse side.
• Pilot Hole Size – Match the pilot or punched hole to the screw’s root diameter – too small risks stripping or breakage, too large weakens the grip.
• Base Material Thickness – Confirm the thread and length suit the gauge of sheet or thickness of plastic being fastened.
• Head Bearing – Confirm the pan head suits the finish and load-spread required; use a flanged or washer head where extra bearing surface is needed on soft or slotted material.

Strategies to Choose the Right Product

• Match the thread form to the material – Use Type AB for thin sheet and plastic; Type C for thicker or harder stock where a finer, machine-style thread grips better.
• Get the pilot hole right – Size the pilot to the screw’s root diameter; a correctly sized hole prevents stripping, splitting, and screw breakage.
• Match material to environment – Use stainless steel (A2/304 or A4/316) for outdoor, humid, or coastal work; case-hardened carbon steel for general dry, indoor fabrication.
• Pick the finish for corrosion – Zinc-plated for basic indoor protection; stainless where moisture, washdown, or weather exposure is a factor.
• Prioritize certified standards – Look for DIN 7981 / ISO 7049 compliance for guaranteed dimensional and thread consistency.
• Consider bulk vs. individual packs – Bulk packs suit production fabrication and repeat assembly; smaller packs suit repairs, servicing, or single jobs.

Mechanical Properties

AM Steel Pan Phillips Self Tapping Screws are manufactured to meet recognized mechanical and dimensional standards, ensuring reliability across sheet-metal, enclosure, and general light-assembly applications:

These mechanical ratings confirm that AM Steel pan Phillips self tapping screws deliver fast, self-forming holding power suited to sheet-metal, enclosure, and general light-assembly applications – size the pilot hole to the screw’s root diameter for best results and to reduce stripping risk.

Frequently Asked Questions (FAQs)

1. What is a pan Phillips self tapping screw used for?
It’s used to fasten sheet metal, plastic, and thin materials — panels, enclosures, ductwork, and fittings – by forming its own mating thread as it’s driven, using a Phillips screwdriver or bit and needing no separate nut.

2. What does “self tapping” mean?
Self tapping means the screw’s aggressive thread cuts or forms its own mating thread in the base material as it’s driven, so no pre-tapped thread is required – only a correctly sized pilot or punched hole.

3. Are AM Steel pan Phillips self tapping screws different from generic self-tappers?
AM Steel self tapping screws are manufactured and quality-tested under the AM Steel brand, ensuring consistent thread quality, point sharpness, head dimensions, and finish across every batch, per DIN 7981 / ISO 7049.

4. Do I need to drill a pilot hole for a self tapping screw?
Usually yes – a pilot or punched hole sized to the screw’s root diameter is recommended in metal and harder materials to prevent stripping, splitting, and breakage; some thin or soft materials accept the sharp point without pre-drilling.

5. What’s the difference between Type AB and Type C self tapping screws?
Type AB has a sharp gimlet point suited to thin sheet, plastic, and soft materials, while Type C has a blunt machine-screw-style point with a finer thread suited to thicker or harder stock.

6. What sizes do pan Phillips self tapping screws come in?
AM Steel pan Phillips self tapping screws are available in a range of sizes, typically ST2.2 to ST6.3 in metric self-tapping designation, with lengths from 6mm to 50mm, per ISO 1478.

7. What’s the difference between a self tapping and a self drilling screw?
A self tapping screw needs a pre-made pilot hole and forms the thread only, while a self drilling (Tek) screw has a drill-point tip that bores its own hole and taps the thread in a single action, needing no pilot hole.

8. Are pan Phillips self tapping screws corrosion-resistant?
Yes, especially AM Steel stainless steel versions (A2/304 or A4/316), which resist rust in outdoor, humid, or coastal environments; zinc-plated carbon steel offers basic protection for indoor and dry conditions.

9. Why choose a pan head over a countersunk self tapping screw?
A pan head sits on top of the surface with a broad flat bearing area that spreads load and needs no countersink, whereas a countersunk head sits flush and requires a countersunk or dimpled hole for a level finish.

10. What tool do I need to install a pan Phillips self tapping screw?
A Phillips screwdriver or Phillips bit matching the cross-recess size is used – seat the driver fully in the recess to avoid cam-out and stripping the head, especially during power driving.

11. Can self tapping screws be used in plastic?
Yes – with a correctly sized pilot hole, self tapping screws (particularly sharp Type AB) form a secure thread in many plastics; avoid overtightening, which can strip the formed thread in softer plastics.

12. Can pan Phillips self tapping screws be reused?
They can often be reinstalled into the same formed thread if it isn’t stripped, though repeated removal weakens the hold; for a loose hole, a slightly larger-diameter screw restores grip.

13. What’s the difference between A2 and A4 stainless steel self tapping screws?
A2 (304) stainless offers good general corrosion resistance for most indoor and outdoor use, while A4 (316), considered marine-grade, provides superior resistance to chlorides and coastal or chemical environments.
