Description

AM Steel Pan Head Screws share the same rounded, low-domed head with a wide, flat bearing surface – spreading clamping load evenly across the mating material – but are offered with two distinct drive options to suit different assembly priorities. Manufactured under the AM Steel brand, the Torx (hexalobular) drive variant is made to ISO 14583, while the Phillips (cross-recess) drive variant is made to DIN 7985/ISO 7045, giving you the flexibility to match the drive to your specific installation method, tooling, and production volume.

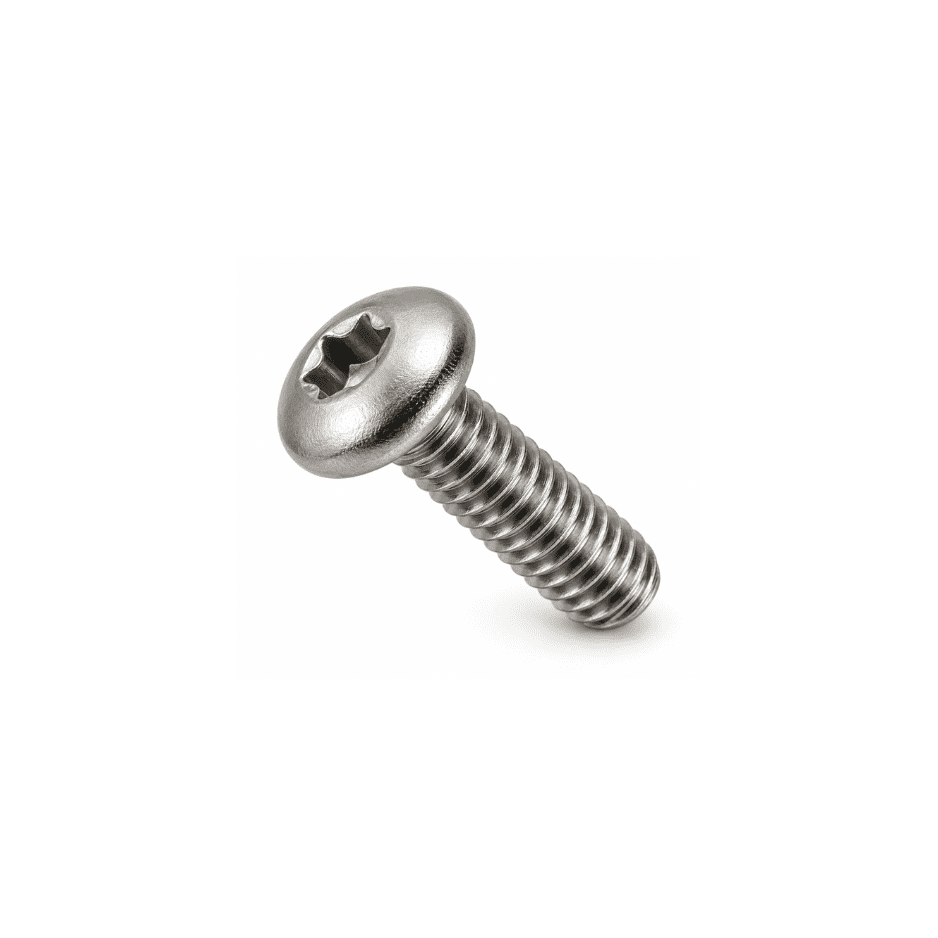

The Torx drive variant uses a six-lobed star-shaped internal socket that engages significantly more surface area than a Phillips recess, delivering better torque transfer and greatly reduced cam-out – a genuine advantage on automated or powered-driver assembly lines, where consistent torque and driver bit longevity directly affect production efficiency and downtime. Unlike the countersunk (CSK) head Torx variant, the pan head Torx screw (ISO 14583) does not carry the reduced head-loadability marking convention, since its head shape distributes load differently than a countersunk profile – meaning it can be specified without the same clamping-force caveat. The Phillips drive variant, made to DIN 7985/ISO 7045, uses the widely recognized cross-recess drive, which remains fast to install with broadly available tools, though it’s more prone to cam-out and driver bit wear under sustained high torque compared to Torx.

AM Steel pan head screws in both drive types are available in steel (property class 4.8, with 8.8 available for the Phillips variant where higher strength is needed) and stainless steel (A2/304, A4/316), suited to electronics, appliance, automotive, and general machine assembly. Choosing between the two often comes down to your specific tooling, production volume, and torque requirements – Torx for demanding, high-volume, or automated production; Phillips for general assembly where broad tool availability and familiarity matter more. As with all AM Steel products, this pan head screw is available in metric sizing (M1.6 to M10, depending on drive standard), in multiple grades, materials, and finishes to suit both industrial-grade and everyday fastening needs.

Key features:

• Rounded, low-domed pan head with a wide bearing surface, available in two drive types
• Torx drive (ISO 14583) for superior torque transfer and reduced cam-out, with no reduced head-loadability caveat
• Phillips drive (DIN 7985/ISO 7045) for fast, familiar installation with widely available tools
• Wide head bearing surface distributes clamping load evenly in both drive variants
• Available in steel (4.8, 8.8) and stainless steel (A2/304, A4/316)
• Backed by the quality assurance of AM Steel

Ideal For

AM Steel Pan Head Screws (Torx/Phillips) are ideal for:

• Automated and robotic assembly lines choosing Torx drive for reduced cam-out and longer driver bit life
• Electronics and appliance manufacturers needing a wide bearing surface in either drive type for reliable clamping
• General machine and equipment assemblers using Phillips drive where standard tools and broad availability matter
• Automotive component assembly requiring reliable, repeatable fastening with high-torque Torx drive
• Maintenance and field service teams stocking Phillips drive pan head screws for compatibility with common screwdrivers

Choosing the Right Pan Head Screw

Selecting the correct pan head screw and drive type from the AM Steel range depends on several factors:

1. Drive Type – Torx (ISO 14583) for high-torque, automated, or high-volume production; Phillips (DIN 7985/ISO 7045) for general assembly with widely available tools.
2. Material – Stainless steel (A2/304 or A4/316) for corrosion resistance; steel (4.8, or 8.8 for higher strength) for general indoor cost-effective use.
3. Head Bearing Requirements – Both drive types share the same wide pan head bearing surface, useful in thin or softer materials.
4. Size & Thread Pitch – Match the screw diameter and thread pitch to the tapped hole or nut.
5. Driver/Bit Availability – Consider which drive type your team already has tooling for, since standardizing reduces changeover time and tool costs.
6. Assembly Method – Prioritize Torx where powered or automated drivers are used; Phillips where hand tools and broad compatibility are more practical.

Strategies to Choose the Right Product

• Choose Torx for automated or high-volume production – Use Torx drive pan head screws wherever powered or robotic drivers are involved, since reduced cam-out improves consistency and driver bit life.
• Choose Phillips for general, tool-flexible assembly – Use Phillips drive pan head screws where broad tool availability and familiarity are more valuable than maximum torque transfer.
• Take advantage of full loadability on pan head Torx – Unlike CSK Torx screws, pan head Torx screws don’t carry a reduced head-loadability marking, making them a straightforward substitute for standard-strength applications.
• Match material to environment – Choose stainless steel (A2/304 or A4/316) for corrosion resistance; steel for general indoor cost-effective use.
• Standardize drive type across a product line where possible – Reduce tooling changeovers by specifying a single drive type consistently across a build.
• Buy in matched sets – Purchase pan head screws with compatible nuts and the correct driver bits (Torx or Phillips) for the sizes ordered.

Mechanical Properties

AM Steel Pan Head Screws (Torx/Phillips) are manufactured to meet recognized mechanical and dimensional standards, ensuring reliability across electronics, appliance, and general production assembly applications:

These mechanical ratings confirm that AM Steel pan head screws deliver consistent, full-loadability clamping performance across both drive types – the choice between Torx and Phillips comes down to torque transfer and tooling preferences rather than a strength trade-off.

Frequently Asked Questions (FAQs)

1. What is a pan head screw used for? A pan head screw is used for general assembly wherever a wide, rounded head bearing surface is preferred, with the choice of Torx or Phillips drive depending on your tooling and torque needs — common in electronics, appliances, and production assembly lines.

2. What’s the difference between pan head Torx and pan head Phillips screws? Both share the same rounded pan head shape, but pan head Torx (ISO 14583) uses a six-lobed star drive offering higher torque transfer and reduced cam-out, while pan head Phillips (DIN 7985/ISO 7045) uses the more widely familiar cross-recess drive.

3. Are AM Steel pan head screws different from generic pan head screws? AM Steel pan head screws are manufactured and quality-tested under the AM Steel brand, ensuring consistent head dimensions, thread quality, and grade compliance across every batch, in both drive types.

4. Does the pan head Torx screw have the same reduced loadability as the CSK Torx screw? No — unlike CSK (countersunk) Torx screws, which carry a reduced head-loadability marking due to their conical head shape, pan head Torx screws (ISO 14583) don’t carry this same caveat, since the pan head bears load differently.

5. Which drive type is better for automated assembly, Torx or Phillips? Torx is generally preferred for automated or powered-driver assembly, since its hexalobular recess engages more surface area and significantly reduces cam-out and driver bit wear compared to a Phillips recess.

6. Are pan head screws corrosion-resistant? Yes, especially AM Steel stainless steel pan head screws (A2/304 or A4/316), which resist rust in outdoor, washdown, or corrosive environments, in both Torx and Phillips drive types.

7. What sizes do pan head screws come in? AM Steel pan head screws are available in a range of sizes, typically M1.6 to M10 in metric, with lengths up to approximately 35–60mm, across both Torx and Phillips drive standards.

8. What tools do I need to install a pan head screw? A Torx driver or bit (matching the specific T-size) is needed for the Torx variant; a Phillips screwdriver (Form H) or matching powered bit is needed for the Phillips variant.

9. Can I substitute a pan head Torx screw for a pan head Phillips screw in the same hole? Generally yes, since both share the same pan head dimensions and comparable metric sizing and thread standards — the main consideration is simply which driver tooling is available at the point of installation.

10. What grade of pan head screw should I use? Property class 4.8 is standard for general-purpose use in either drive type, while 8.8 offers higher strength where available, particularly in the Phillips variant; stainless steel grades are chosen primarily for corrosion resistance.

11. Can pan head screws be reused? Yes, as long as the threads and drive recess (Torx lobes or Phillips cross) aren’t damaged, stripped, or worn, pan head screws can typically be reused in non-critical applications.

12. What’s the difference between A2 and A4 stainless steel pan head screws? A2 (304) stainless offers good general corrosion resistance for most indoor and outdoor use, while A4 (316) stainless provides superior resistance to chlorides and marine or washdown environments.

13. Which drive type should I choose if I’m not sure? If your assembly process uses powered or automated drivers, or requires high, repeatable torque, choose Torx; if you need broad tool compatibility and are working with standard hand tools, Phillips remains a reliable, widely available choice.
