Description

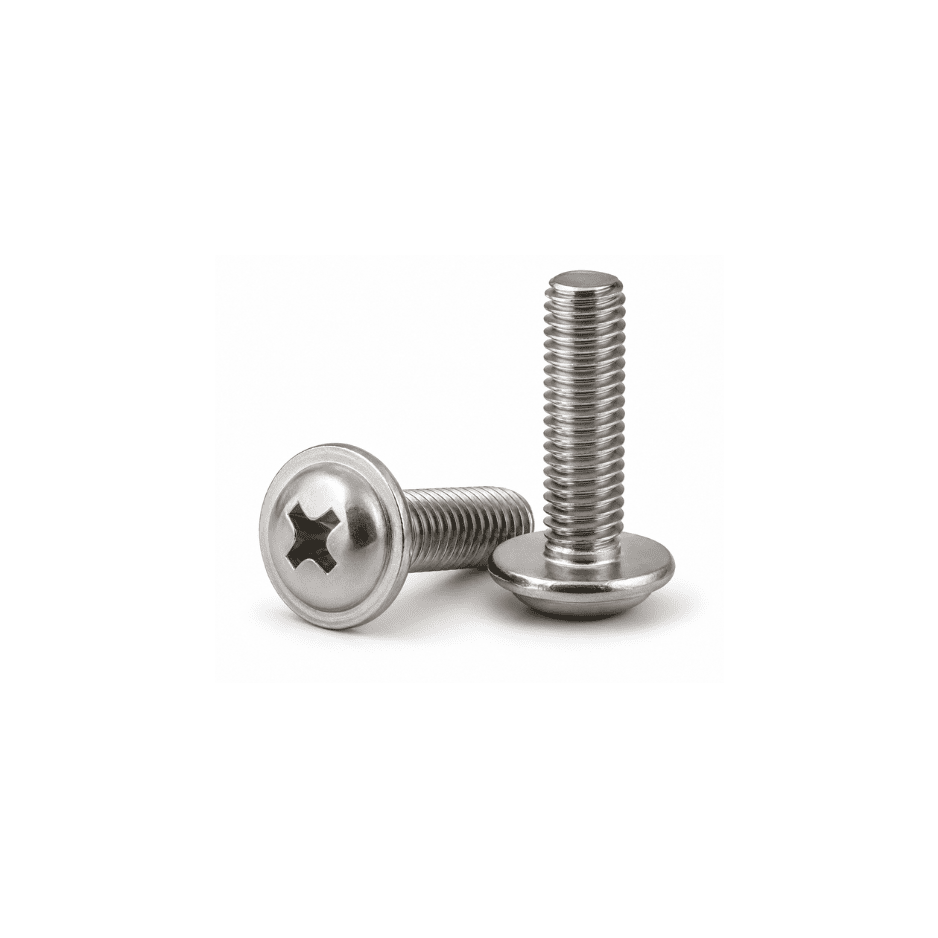

AM Steel Pan Combi Screws with Washer combine three practical features into a single fastener: a rounded pan head for a wide bearing surface, a combination (combi) drive that accepts either a Phillips/cross-head or a flat-blade screwdriver, and a captive washer that’s permanently attached beneath the head. Manufactured under the AM Steel brand, the captive washer format follows the same principle as standard SEMS assemblies (per DIN 6902 and related captive washer specifications) – the washer is installed onto the screw blank before thread rolling, so the thread’s major diameter ends up larger than the washer’s inner hole, keeping the washer permanently captive while still allowing it to spin freely during installation.

The combi drive gives assembly teams flexibility on the shop floor – a technician can reach for whichever screwdriver (Phillips or flat-blade) is on hand without needing a specific driver, which is particularly useful for field service, maintenance, and mixed-tooling environments. Combined with the pre-assembled washer – typically a flat washer, or a flat-plus-spring lock washer combination for vibration resistance – AM Steel pan combi screws eliminate the need to separately source, align, and install a washer, reducing assembly time and preventing dropped or lost components on the production line.

AM Steel pan combi screws with washer are available in zinc-plated steel and stainless steel (A2/304, A4/316), suited to electrical panels, appliances, automotive assemblies, and general machinery. Whether your team is standardizing on a single flexible fastener for field repairs or streamlining a high-volume assembly line, AM Steel pan combi screws with washer deliver both convenience and reliability. As with all AM Steel products, this pan combi screw is available in metric and imperial sizing, in multiple grades, materials, and finishes to suit both industrial-grade and everyday fastening needs.

Key features:

• Combination (combi) drive accepts either Phillips or flat-blade screwdrivers
• Pre-assembled, captive washer – free-spinning but cannot fall off
• Pan head design provides a wide bearing surface for even load distribution
• Available in zinc-plated steel and stainless steel (A2/304, A4/316)
• Reduces assembly time and eliminates dropped or lost washer components
• Backed by the quality assurance of AM Steel

Ideal For

AM Steel Pan Combi Screws with Washer are ideal for:

• Electrical panel builders and electricians needing a secure, washer-integrated connection with tool flexibility
• Appliance and equipment manufacturers streamlining high-volume assembly with a captive washer fastener
• Field service and maintenance technicians who benefit from a screw that works with either a Phillips or flat-blade driver
• Automotive assembly lines requiring vibration-resistant fastening with an integrated washer
• General production facilities aiming to reduce part count, handling time, and assembly errors

Choosing the Right Pan Combi Screw with Washer

Selecting the correct pan combi screw from the AM Steel range depends on several factors:

1. Washer Configuration – Single flat washer for general fastening; flat-plus-spring lock washer combination for vibration-prone applications.
2. Material – Stainless steel (A2/304 or A4/316) for corrosion resistance in outdoor or washdown environments; zinc-plated steel for general indoor use.
3. Size & Thread Pitch – Match the screw diameter and thread pitch (metric or imperial) to the tapped hole or nut.
4. Sheet Thickness Compatibility – Note that the captive washer extends the unthreaded run-out section, so verify the screw suits thin-sheet applications if that’s your use case.
5. Drive Preference – Confirm the combi drive’s Phillips and slotted profiles are compatible with the screwdrivers or powered bits available on your assembly line or in the field.
6. Vibration Exposure – Choose a lock washer configuration for dynamic loads; a flat washer alone may suffice for static assemblies.

Strategies to Choose the Right Product

• Standardize on combi drive for field flexibility – Choose pan combi screws where technicians in the field may not always have the exact driver type on hand, since either Phillips or flat-blade tools will work.
• Match washer type to vibration risk – Use a flat-plus-spring lock washer configuration for automotive or high-vibration equipment; single flat washer for static, low-vibration assembly.
• Match material to environment – Choose stainless steel for outdoor, humid, or corrosive environments; zinc-plated steel for standard indoor use.
• Buy in matched sets – Since the washer is pre-assembled, ensure the screw’s washer type and diameter are already compatible with your joint design before ordering.
• Prioritize certified standards – Look for compliance with DIN 6902 or equivalent captive washer specifications for guaranteed dimensional and mechanical consistency.
• Consider bulk vs. individual packs – Bulk packs suit high-volume manufacturing; smaller packs suit prototyping, repairs, or low-volume assembly.

Mechanical Properties

AM Steel Pan Combi Screws with Washer are manufactured to meet recognized mechanical and dimensional standards, ensuring reliability across electrical, automotive, and general production assembly applications:

These mechanical ratings confirm that AM Steel pan combi screws with washer retain standard fastener strength while adding the convenience of dual-drive tool compatibility and a captive, non-removable washer.

Frequently Asked Questions (FAQs)

1. What is a pan combi screw with washer used for? A pan combi screw with washer is used anywhere a screw and washer need to be installed together with driver flexibility — commonly in electrical panels, appliances, automotive assembly, and field maintenance work.

2. What does “combi” mean on a screw drive? Combi refers to a combination drive that features both a Phillips (cross-recess) and a slotted (flat-blade) profile in the same head, allowing either type of screwdriver to be used for installation.

3. Are AM Steel pan combi screws different from generic combi screws with washer? AM Steel pan combi screws with washer are manufactured and quality-tested under the AM Steel brand, ensuring consistent washer retention, drive compatibility, and finish quality across every batch.

4. Can the washer fall off a pan combi screw? No – the washer is captive, meaning it’s installed on the screw shank before the threads are rolled, making the thread diameter larger than the washer’s inner hole so it can spin freely but never come off.

5. What’s the advantage of a combi drive over a single drive type (Phillips or slotted only)? A combi drive allows technicians to use whichever screwdriver is available – Phillips or flat-blade – without needing the exact matching tool, which is especially useful for field service, repairs, and mixed-tooling environments.

6. Are pan combi screws with washer corrosion-resistant? Yes, especially AM Steel stainless steel pan combi screws (A2/304 or A4/316), which resist rust and moisture damage; zinc-plated steel versions offer moderate protection for indoor use.

7. What sizes do pan combi screws with washer come in? AM Steel pan combi screws with washer are available in a range of common metric and imperial sizes suited to electrical, appliance, and general assembly applications.

8. Are pan combi screws with washer suitable for vibration-prone applications? Yes, when fitted with a flat-plus-spring lock washer configuration, these screws are designed to resist loosening in automotive, appliance, and other vibration-exposed applications.

9. What tools do I need to install a pan combi screw? Either a Phillips screwdriver or a flat-blade (slotted) screwdriver can be used, since the combi drive is designed to accept both.

10. Can pan combi screws with washer be reused? Yes, the screw itself can generally be reused if undamaged, though a spring or lock washer may lose tension over repeated use and should be inspected for wear before reinstallation.

11. What’s the difference between zinc-plated and stainless steel pan combi screws? Zinc-plated pan combi screws offer basic corrosion resistance at a lower cost, while stainless steel pan combi screws provide superior long-term durability and resistance to rust in harsher or outdoor environments.

12. Do pan combi screws with washer work well on thin sheet metal? The captive washer adds to the screw’s unthreaded run-out length, so very thin sheets should be checked against the specific screw’s dimensions to ensure proper seating and thread engagement.

13. What is the torque rating for pan combi screws with washer? Torque ratings depend on screw diameter, material grade, and washer configuration – always refer to the manufacturer’s torque chart or the AM Steel torque chart to ensure correct tightening for the intended load.
