Description

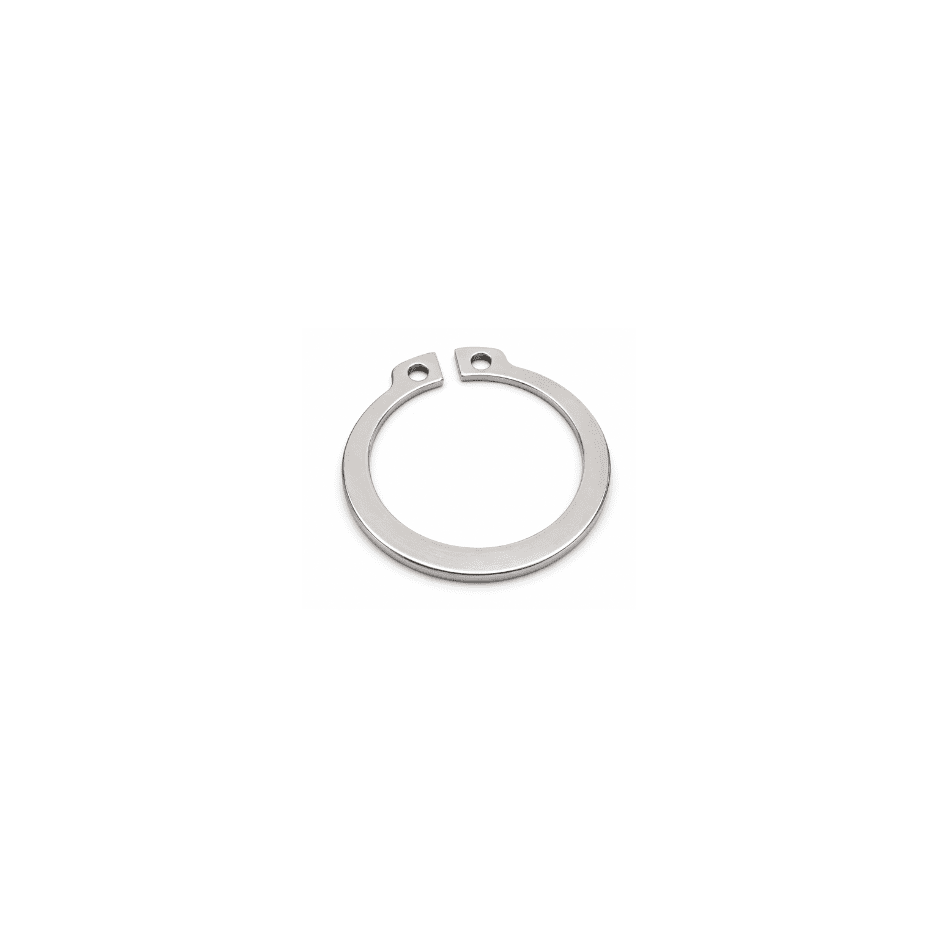

AM Steel External Circlips are stamped from flat spring steel strip into a C-shape, designed to seat into a circumferential groove machined on the outside diameter (OD) of a shaft. Manufactured under the AM Steel brand to DIN 471, once installed, the circlip protrudes radially outward from the shaft surface, creating a positive mechanical shoulder that prevents axially loaded components – such as gears, bearings, pulleys, and collars – from sliding off the end of the shaft, while still permitting the component to rotate freely around the shaft.

A detail worth understanding clearly: DIN 471 external circlips are specifically for shafts (the groove sits on the outside diameter of the shaft) and should not be confused with DIN 472 internal circlips, which are designed for bores and housings (the groove sits on the inside diameter). The correct way to specify size is always by where the groove is machined, not by the component being retained – for example, a bearing with a 25mm outer diameter fitted inside a 52mm housing bore requires a DIN 472-52 internal circlip for the housing, which has nothing to do with the bearing’s own 25mm diameter; specifying by the retained part rather than the groove location is a common and costly mistake.

AM Steel external circlips are manufactured from carbon spring steel (commonly with a phosphate and oil finish for corrosion protection during storage and handling) and stainless steel (AISI 301/1.4310 or AISI 316L/1.4404 for corrosion-resistant or higher-temperature applications). They are installed and removed using circlip (snap ring) pliers engaged in the small lug holes at each end of the ring. Whether you’re assembling gearboxes, electric motors, precision machinery, or general rotating equipment, AM Steel external circlips provide a compact, cost-effective, and easily serviceable axial retention solution. As with all AM Steel products, this external circlip is available in metric sizing (typically 3mm to 300mm shaft diameter and beyond per DIN 471), in multiple materials and finishes to suit both industrial-grade and precision fastening needs.

Key features:

• C-shaped spring steel design seats into a groove on the shaft’s outer diameter
• Manufactured to DIN 471 (external/shaft circlips – distinct from DIN 472 internal/bore circlips)
• Creates a positive axial shoulder while permitting free rotation of retained components
• Available in carbon spring steel and stainless steel (AISI 301/1.4310, 316L/1.4404)
• Installed and removed with circlip (snap ring) pliers
• Backed by the quality assurance of AM Steel

Ideal For

AM Steel External Circlips are ideal for:

• Gearbox and transmission manufacturers retaining gears and bearings on rotating shafts
• Electric motor and pump assemblers securing bearings and pulleys in place along a shaft
• Precision machinery builders needing a compact, serviceable axial retention solution
• Automotive and industrial equipment technicians performing bearing or component replacement on shafts
• General rotating equipment manufacturers wherever a shaft-mounted retaining ring is required

Choosing the Right External Circlip

Selecting the correct external circlip from the AM Steel range depends on several factors:

1. Groove Location Confirmation – Confirm the groove is machined on the shaft’s outer diameter (external/DIN 471) rather than inside a bore (internal/DIN 472) – always specify by groove location, not by the component being retained.
2. Material – Stainless steel (AISI 301/1.4310 or 316L/1.4404) for corrosive or high-temperature environments; carbon spring steel (phosphate and oil finish) for general industrial use.
3. Shaft Diameter – Match the circlip’s nominal size to the actual shaft diameter at the groove location.
4. Groove Dimensions – Confirm the groove diameter, width, and depth match the circlip manufacturer’s specification for a secure, properly seated fit.
5. Axial Load Requirements – Confirm the circlip’s rated axial load capacity is adequate for the specific application’s operating forces.
6. Installation Access – Ensure adequate clearance for circlip pliers to engage the lug holes during installation and removal.

Strategies to Choose the Right Product

• Always specify by groove location, not retained part – Confirm whether the groove sits on a shaft (DIN 471, external) or inside a bore (DIN 472, internal) before ordering, since this is the single most common specification error.
• Match material to environment – Choose stainless steel (301/1.4310 or 316L/1.4404) for corrosive, high-temperature, or high-hygiene environments; carbon spring steel for general industrial use.
• Verify groove dimensions before production runs – Cross-check groove diameter, width, and depth against the circlip manufacturer’s specification to ensure proper seating and full load capacity.
• Buy in matched sets – Purchase external circlips alongside the correct size circlip (snap ring) pliers for reliable, damage-free installation and removal.
• Prioritize certified standards – Look for DIN 471 compliance for guaranteed dimensional and spring-force consistency.
• Consider bulk vs. individual packs – Bulk packs suit gearbox, motor, or machinery production runs; smaller packs suit repairs or maintenance work.

Mechanical Properties

AM Steel External Circlips are manufactured to meet recognized mechanical and dimensional standards, ensuring reliability across gearbox, motor, and general machinery applications:

These mechanical ratings confirm that AM Steel external circlips provide reliable axial retention for rotating shaft assemblies – always confirm groove location, dimensions, and material before specifying for your application.

Frequently Asked Questions (FAQs)

1. What is an external circlip used for? An external circlip is used to retain components – such as gears, bearings, pulleys, and collars – on the outside of a shaft, by seating into a groove and creating a positive shoulder that prevents the component from sliding off the shaft end.

2. What’s the difference between an external circlip (DIN 471) and an internal circlip (DIN 472)? An external circlip (DIN 471) seats into a groove on the outside diameter of a shaft, while an internal circlip (DIN 472) seats into a groove on the inside diameter of a bore or housing – the correct choice always depends on where the groove is machined, not on what component is being retained.

3. Are AM Steel external circlips different from generic retaining rings? AM Steel external circlips are manufactured and quality-tested under the AM Steel brand, ensuring consistent spring force, dimensional accuracy, and finish quality across every batch, per DIN 471.

4. How do I know if I need a DIN 471 or DIN 472 circlip? Check your engineering drawing for the groove detail: if the groove is machined on the outside of a shaft, you need a DIN 471 external circlip; if the groove is machined on the inside of a bore or housing, you need a DIN 472 internal circlip.

5. Are external circlips corrosion-resistant? Yes, especially AM Steel stainless steel external circlips (AISI 301/1.4310 or 316L/1.4404), which resist rust in corrosive, wet, or high-temperature environments; carbon spring steel with a phosphate and oil finish offers moderate protection for general industrial use.

6. What sizes do external circlips come in? AM Steel external circlips are available in a wide range of sizes, typically from 3mm to 300mm shaft diameter and beyond, per DIN 471.

7. How is an external circlip’s nominal size determined? The nominal size of a DIN 471 external circlip equals the shaft diameter at the groove – for example, a 25mm shaft requires a DIN 471-25 circlip, regardless of what other components are being retained.

8. What tools do I need to install an external circlip? Circlip (snap ring) pliers, sized appropriately for the ring’s diameter, are used to compress or expand the ring by engaging the lug holes at each end, allowing it to be fitted into or removed from the shaft groove.

9. Can external circlips be reused? Yes, as long as the circlip isn’t deformed, overstretched, or showing signs of fatigue or cracking, it can typically be reused; a circlip that has lost its spring tension or shows damage should be replaced.

10. What’s the difference between AISI 301 and AISI 316L stainless steel external circlips? AISI 301 (1.4310) offers good general spring properties and corrosion resistance for most industrial use, while AISI 316L (1.4404) provides superior resistance to chlorides and higher-temperature or highly corrosive environments.

11. What industries commonly use external circlips? Common applications include gearboxes, electric motors, pumps, automotive components, and general precision machinery wherever a shaft-mounted retaining ring is needed.

12. Why is groove dimension important when choosing an external circlip? The groove diameter, width, and depth must match the circlip manufacturer’s specification for the ring to seat properly and achieve its full rated axial load capacity – an incorrectly sized groove can compromise retention performance.

13. What’s a common mistake when ordering external circlips? A common mistake is specifying the circlip size based on the diameter of the component being retained (such as a bearing) rather than the actual groove diameter on the shaft – always confirm the groove location and dimension directly from the engineering drawing.
