Description

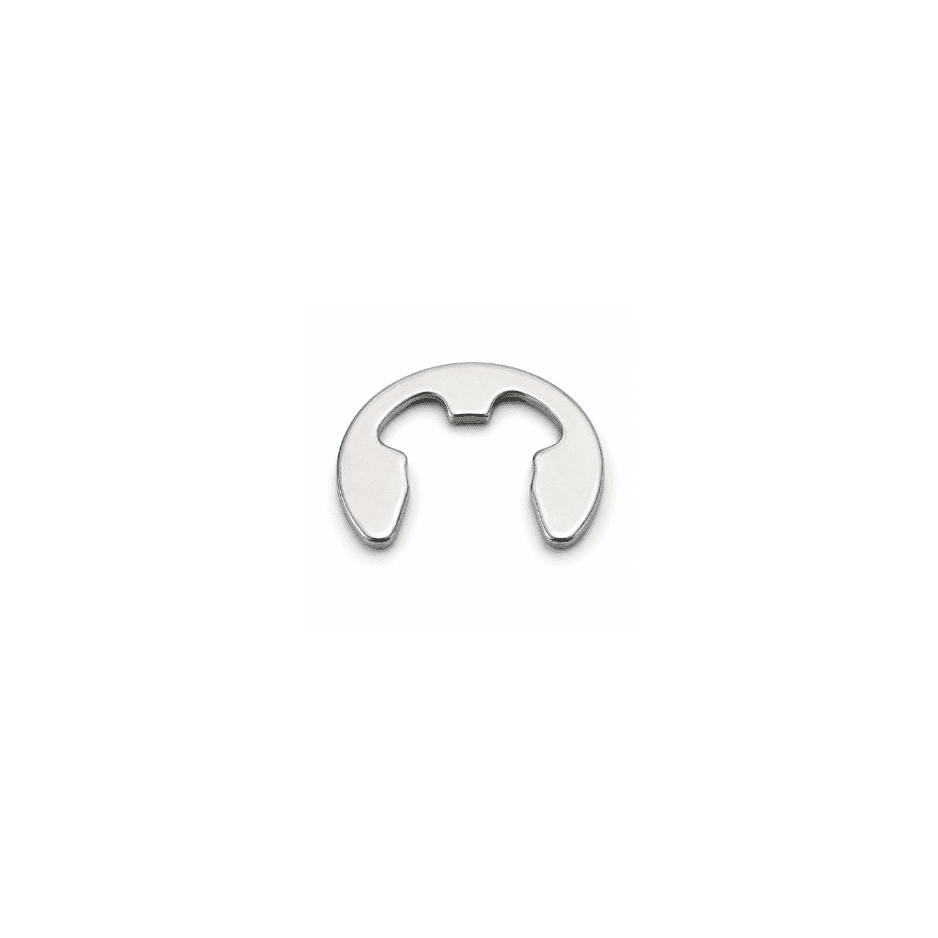

AM Steel E-Type Circlips are external retaining rings whose distinctive shape – resembling the letter “E” – gives them their name. Manufactured under the AM Steel brand to DIN 6799, unlike a standard external circlip (DIN 471) which is typically installed axially with circlip pliers engaging lug holes, an E-clip is installed radially: it’s pushed directly onto the shaft from the side and snaps into a machined groove, stopping the axial movement of a component along the shaft. This radial installation method means E-clips generally don’t require any special tooling, making them fast and simple to fit, particularly in smaller-diameter, lighter-duty applications.

E-clips create a shoulder against the shaft groove that retains washers, bearings, gears, or other components in place while permitting normal rotation, and they eliminate the need for threading, tapping, or other machining operations that a conventional threaded fastener would require – a genuine cost and assembly-time advantage in high-volume production. Because of their compact size and simple radial installation, E-clips are especially common in small motors, appliances, toys, electronics, and general light machinery, though it’s worth noting they are generally intended for lighter axial loads compared to a standard external circlip of comparable shaft diameter, given their smaller effective bearing area against the groove.

AM Steel E-clips are manufactured from carbon spring steel (such as 65Mn or C67S, typically with a black phosphate, black oxide, or zinc-plated finish) and stainless steel (400-series/420, or 304 for improved corrosion resistance), covering a wide range of small to medium shaft diameters. Whether you’re assembling small motors, appliances, toys, or general light machinery, AM Steel E-type circlips provide a fast, cost-effective axial retention solution. As with all AM Steel products, this E-type circlip is available in metric sizing (typically 0.8mm to 32mm shaft diameter per DIN 6799), in multiple materials and finishes to suit both industrial-grade and light-duty fastening needs.

Key features:

• E-shaped design installs radially, pressed directly onto the shaft groove
• Manufactured to DIN 6799, generally requiring no special installation tools
• Eliminates the need for threading, tapping, or other machining operations
• Available in carbon spring steel (65Mn, C67S) and stainless steel (420, 304)
• Compact size well suited to small shafts and light-duty axial retention
• Backed by the quality assurance of AM Steel

Ideal For

AM Steel E-Type Circlips are ideal for:

• Small motor and appliance manufacturers securing gears, washers, and components on compact shafts
• Electronics assemblers needing a fast, tool-light retention solution for small pins and shafts
• Toy and consumer product manufacturers retaining components without threading or tapping operations
• General light machinery builders wherever axial retention is needed on small-diameter shafts
• High-volume production lines benefiting from E-clips’ fast, low-cost radial installation

Choosing the Right E-Type Circlip

Selecting the correct E-type circlip from the AM Steel range depends on several factors:

1. Shaft Diameter – Match the E-clip’s nominal size to the actual shaft diameter at the groove location, per DIN 6799 sizing.
2. Material – Stainless steel (420 or 304) for corrosive or damp environments; carbon spring steel (65Mn, C67S) for general indoor use.
3. Load Requirements – Confirm the E-clip’s axial load capacity is adequate, keeping in mind E-clips are generally suited to lighter loads than a standard external circlip of the same shaft diameter.
4. Groove Dimensions – Confirm the groove diameter and width match the E-clip manufacturer’s specification for a secure, properly seated fit.
5. Installation Access – Ensure the shaft groove is accessible from the side for radial (push-on) installation.
6. Finish Requirements – Choose a plain, black phosphate, or zinc-plated finish based on the level of corrosion protection needed.

Strategies to Choose the Right Product

• Choose E-clips for smaller, lighter-duty shafts – Use E-type circlips where shaft diameter is small and axial loads are moderate; step up to a standard external circlip (DIN 471) for larger shafts or higher load requirements.
• Match material to environment – Choose stainless steel (420 or 304) for damp, corrosive, or washdown environments; carbon spring steel for general indoor use.
• Take advantage of radial installation for production speed – Specify E-clips where fast, tool-light assembly on a high-volume production line is a priority.
• Verify groove dimensions before production runs – Cross-check groove diameter and width against the E-clip manufacturer’s specification to ensure proper seating.
• Buy in matched sets – Purchase E-clips in consistent sizes across a production run for repeatable assembly results.
• Consider bulk vs. individual packs – Bulk packs suit small motor, appliance, or electronics production runs; smaller packs suit repairs or prototyping.

Mechanical Properties

AM Steel E-Type Circlips are manufactured to meet recognized mechanical and dimensional standards, ensuring reliability across small motor, electronics, and general light machinery applications:

These mechanical ratings confirm that AM Steel E-type circlips provide a fast, cost-effective axial retention solution for small shafts and light-duty applications – always confirm load requirements against the lighter capacity of this circlip type before specifying.

Frequently Asked Questions (FAQs)

1. What is an E-type circlip used for? An E-type circlip is used to retain components – such as washers, gears, or bearings – on a small-diameter shaft, by snapping into a machined groove and creating a shoulder that stops axial movement.

2. Why is it called an E-clip? It’s called an E-clip because its shape resembles the written letter “E,” distinguishing it visually from the C-shaped design of standard external and internal circlips.

3. Are AM Steel E-type circlips different from generic E-clips? AM Steel E-type circlips are manufactured and quality-tested under the AM Steel brand, ensuring consistent spring tension, dimensional accuracy, and finish quality across every batch, per DIN 6799.

4. What’s the difference between an E-clip (DIN 6799) and a standard external circlip (DIN 471)? An E-clip is installed radially, pushed directly onto the shaft groove from the side without special tools, and is generally suited to smaller shafts and lighter loads, while a standard external circlip (DIN 471) is installed axially using circlip pliers and generally handles higher axial loads on larger shafts.

5. Are E-type circlips corrosion-resistant? Yes, especially AM Steel stainless steel E-clips (420 or 304), which resist rust in damp, corrosive, or washdown environments; carbon spring steel with a black phosphate or zinc-plated finish offers moderate protection for general indoor use.

6. What sizes do E-type circlips come in? AM Steel E-type circlips are available in a range of sizes, typically from 0.8mm to 32mm shaft diameter, per DIN 6799.

7. Do I need special tools to install an E-clip? Generally no – E-clips are designed to be pressed directly onto the shaft groove by hand or with simple pliers, unlike standard circlips which require dedicated circlip pliers engaging lug holes.

8. Can E-type circlips handle heavy axial loads? E-clips are generally intended for lighter axial loads compared to a standard external circlip of similar shaft diameter, due to their smaller effective bearing area against the groove – for higher-load applications, a standard external circlip (DIN 471) is typically more appropriate.

9. Can E-type circlips be reused? Yes, as long as the clip isn’t deformed, overstretched, or showing signs of fatigue or cracking, it can typically be reused; a clip that has lost its spring tension or shows damage should be replaced.

10. What’s the difference between 420 and 304 stainless steel E-clips? 420 stainless steel is a hardenable martensitic grade offering good spring properties and moderate corrosion resistance, while 304 stainless steel offers improved general corrosion resistance, though typically with somewhat different hardness characteristics depending on the specific application.

11. What industries commonly use E-type circlips? Common applications include small motors, appliances, toys, electronics, and general light machinery wherever a fast, compact, tool-light retention solution is needed on a small shaft.

12. Why are E-clips popular in high-volume production? E-clips eliminate the need for threading, tapping, or other machining operations, and their radial, tool-light installation speeds up assembly, reducing production costs across high-volume manufacturing lines.

13. What’s a common mistake when choosing an E-type circlip? A common mistake is selecting an E-clip for an application with axial loads beyond its lighter-duty capacity – always confirm the specific load requirements and consider a standard external circlip (DIN 471) if higher retention strength is needed.
