Description

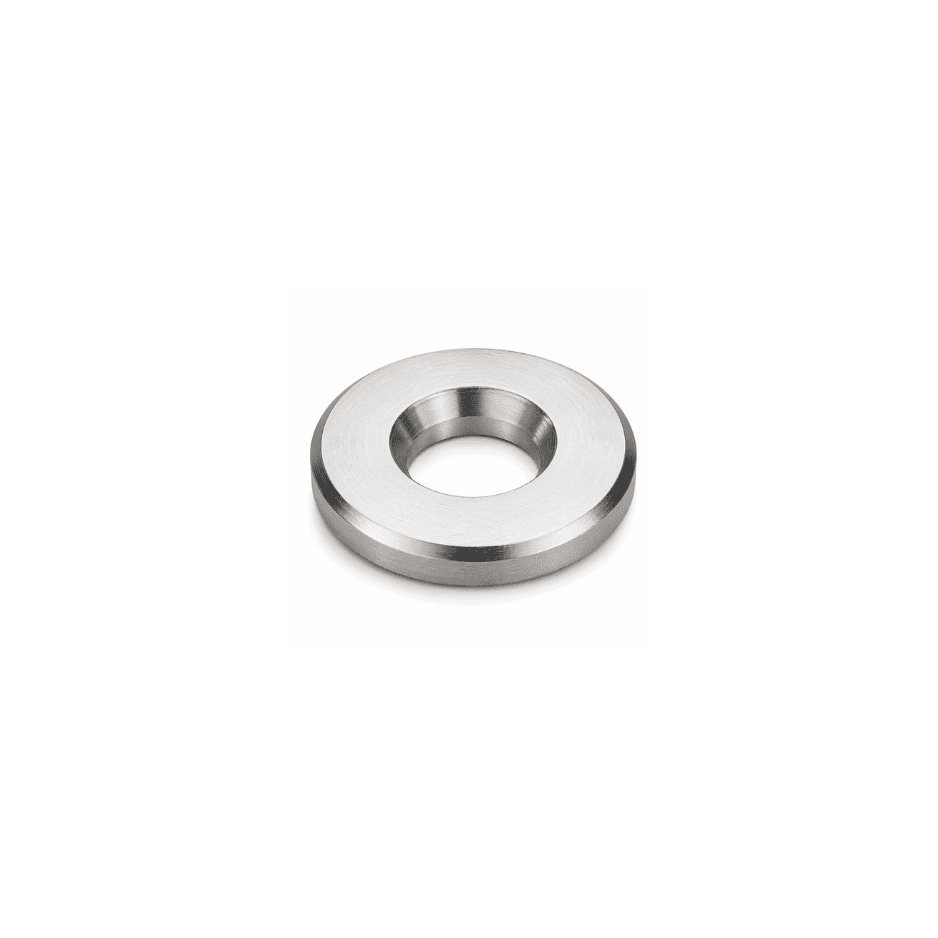

AM Steel CSK Washers are precision-turned washers featuring a tapered, conical bore instead of the simple cylindrical hole found in a standard flat washer, matching the underhead angle of a countersunk (flat or oval head) screw. Manufactured under the AM Steel brand, these washers are commonly sized to fit screws made to DIN 7991 (countersunk socket head) or DIN ISO 2009 (countersunk slotted machine screw), giving the screw head a proper conical seat to sit into rather than bearing directly against a flat surface or an incorrectly-sized countersunk hole.

CSK washers serve two related purposes: functionally, they provide a correctly matched bearing surface for a countersunk screw when the base material’s countersunk recess is oversized, undersized, worn, or simply not present – allowing the screw to sit flush and evenly loaded rather than proud or rocking. Aesthetically, they’re frequently chosen for design-sensitive or finishing applications, such as handwheel hub caps, jig and fixture construction, and furniture assembly, where a clean, turned, and often polished washer improves the overall appearance of the fastened joint. AM Steel CSK washers are precision-turned from steel (black oxide or zinc-plated finish) and stainless steel (303/304, with 316 available for corrosive environments), suited to both functional and cosmetic use cases.

Whether you’re finishing a handwheel assembly, building a jig or fixture, completing furniture work, or simply need a proper seat for a countersunk screw in a material without a matching recess, AM Steel CSK washers provide a clean, functional solution. As with all AM Steel products, this CSK washer is available in metric sizing (typically M3 to M8, matching DIN 7991/ISO 2009 screw sizes), in multiple materials and finishes to suit both industrial-grade and aesthetic fastening needs.

Key features:

• Tapered, conical bore matches the underhead angle of countersunk (CSK) screws
• Sized to fit DIN 7991 and DIN ISO 2009 countersunk screws
• Provides a proper bearing seat where the base material’s countersink is missing, worn, or mismatched
• Precision-turned for a clean, aesthetically finished appearance
• Available in steel (black oxide, zinc-plated) and stainless steel (303/304, 316)
• Backed by the quality assurance of AM Steel

Ideal For

AM Steel CSK Washers are ideal for:

• Jig and fixture builders securing components with a clean, properly seated countersunk connection
• Machine designers finishing handwheel hub caps and shaft-end retention with a polished appearance
• Furniture and cabinetry makers wanting a smooth, level seat for countersunk screws on visible surfaces
• Metal fabricators needing a proper bearing surface where a countersunk hole is oversized or absent
• Design and aesthetics-focused projects requiring a professional, finished look around a countersunk fastener

Choosing the Right CSK Washer

Selecting the correct CSK washer from the AM Steel range depends on several factors:

1. Screw Compatibility – Confirm the washer’s conical bore matches your specific countersunk screw standard (DIN 7991 or DIN ISO 2009) and size.
2. Material – Stainless steel (303/304 or 316) for corrosion resistance and a polished, decorative finish; steel (black oxide or zinc-plated) for general functional use.
3. Head Angle Match – Ensure the washer’s internal taper matches the screw’s head angle (commonly 90° for metric CSK screws) for a proper, flush seat.
4. Outer Diameter – Choose an outer diameter appropriate to the bearing surface area needed and the surrounding assembly clearance.
5. Application Purpose – Prioritize a polished, precision-turned finish for visible or aesthetic applications; a simpler black oxide finish is often sufficient for hidden, purely functional use.
6. Surface Condition – Use a CSK washer where the base material lacks a proper countersunk recess, is worn, or the existing countersink doesn’t correctly match the screw head angle.

Strategies to Choose the Right Product

• Match the washer to your exact screw standard – Confirm DIN 7991 or DIN ISO 2009 compatibility (and screw size) before ordering, since the conical bore must match the screw’s head geometry.
• Choose stainless steel for visible or corrosive-environment applications – Use 303/304 or 316 stainless steel CSK washers where appearance or outdoor/washdown durability matters.
• Use CSK washers to correct mismatched countersinks – When an existing countersunk hole is oversized, undersized, or absent, a CSK washer restores a proper bearing seat without re-machining the part.
• Buy in matched sets – Purchase CSK washers alongside the specific countersunk screws they’re intended to seat, confirming size and angle compatibility together.
• Prioritize turned, precision finishes for aesthetic work – Specify precision-turned CSK washers where the fastened joint will be visible, such as furniture or handwheel assemblies.
• Consider bulk vs. individual packs – Bulk packs suit production or fixture-building runs; smaller packs suit finishing work or repairs.

Mechanical Properties

AM Steel CSK Washers are manufactured to meet recognized dimensional standards, ensuring reliability across jig/fixture, finishing, and general countersunk fastening applications:

These specifications confirm that AM Steel CSK washers provide a properly matched bearing seat for countersunk screws – always verify the washer’s bore angle and size against your specific screw standard before use.

Frequently Asked Questions (FAQs)

1. What is a CSK washer used for? A CSK washer is used to provide a proper, flush bearing seat for a countersunk (flat or oval head) screw, especially where the base material lacks a matching countersunk recess, or for a clean, finished appearance in jig, fixture, and furniture work.

2. What’s the difference between a CSK washer and a standard flat washer? A CSK washer has a tapered, conical bore that matches a countersunk screw’s head angle, while a standard flat washer has a simple cylindrical hole designed for screws or bolts with a head that sits above the surface.

3. Are AM Steel CSK washers different from generic countersunk washers? AM Steel CSK washers are manufactured and quality-tested under the AM Steel brand, ensuring a consistent, precisely-matched conical bore and finish quality across every batch.

4. What screw standards do CSK washers fit? AM Steel CSK washers are typically sized to fit screws made to DIN 7991 (countersunk socket head) or DIN ISO 2009 (countersunk slotted machine screw).

5. Are CSK washers corrosion-resistant? Yes, especially AM Steel stainless steel CSK washers (303/304 or 316), which resist rust in outdoor, washdown, or corrosive environments; steel versions with black oxide or zinc plating offer moderate protection for general indoor use.

6. What sizes do CSK washers come in? AM Steel CSK washers are available in a range of sizes, typically M3 to M8 in metric, matching common countersunk screw sizes.

7. Why would I need a CSK washer instead of just using the base material’s countersunk hole? A CSK washer is useful when the base material’s countersunk recess is oversized, undersized, worn, or absent, or when a clean, precision-turned finished appearance is desired for aesthetic or design-sensitive applications.

8. What’s a common application for CSK washers? Common applications include jig and fixture construction, handwheel hub cap retention on shaft ends, furniture assembly, and other design-sensitive or finishing work.

9. What tools do I need to install a CSK washer? No special tools are needed for the washer itself – installation uses whatever tool (Allen key, screwdriver) matches the drive type of the countersunk screw being installed through it.

10. Can CSK washers be reused? Yes, as long as the washer isn’t deformed, cracked, or excessively worn, CSK washers can typically be reused in non-critical applications.

11. What’s the difference between 303/304 and 316 stainless steel CSK washers? 303/304 stainless offers good general corrosion resistance and a polished appearance for most indoor and outdoor use, while 316 stainless provides superior resistance to chlorides and marine or washdown environments.

12. Do CSK washers need to match the head angle of the screw exactly? Yes, the washer’s conical bore should match the screw’s head angle (commonly 90° for metric countersunk screws) to ensure the screw seats flush and evenly loaded rather than proud or unevenly supported.

13. Are CSK washers suitable for structural or high-load applications? CSK washers are primarily intended for providing a proper bearing seat and finished appearance in general and light-duty applications rather than high-load structural fastening, where standard flat washers with appropriately matched hardness are typically used instead.
