Description

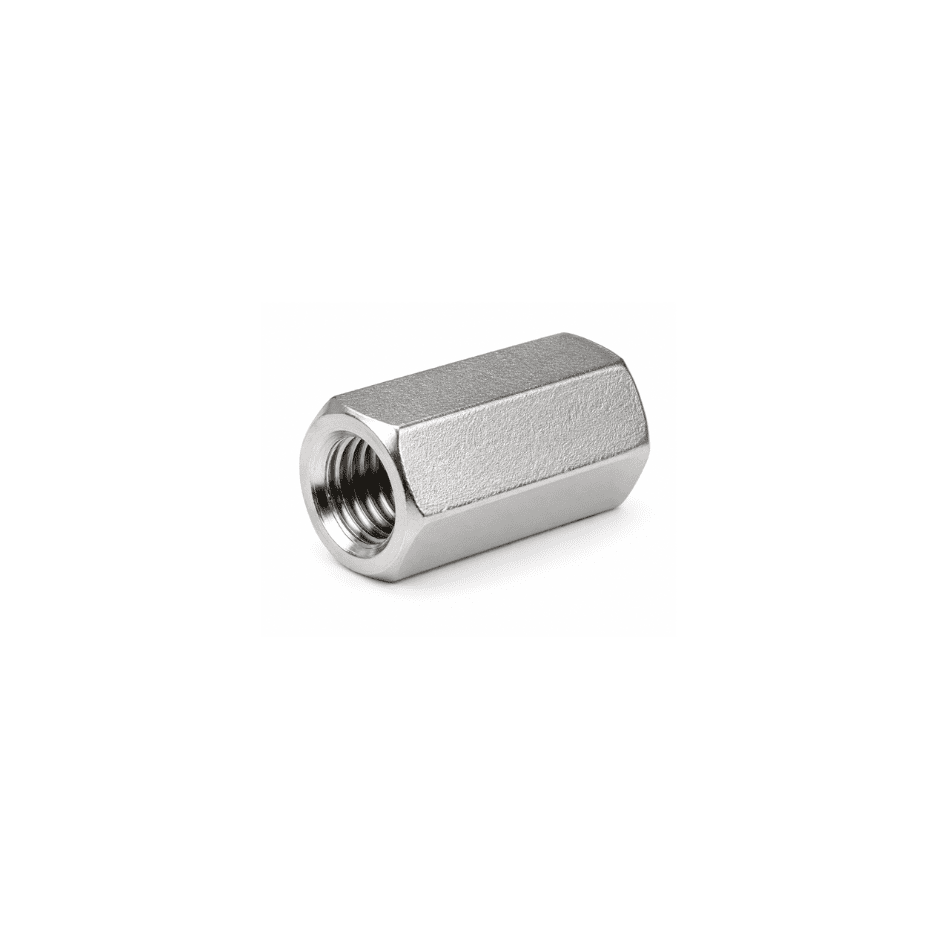

AM Steel Long Nuts are elongated hexagonal nuts with a deep, full-length internal thread, designed to connect two lengths of threaded rod, stud, or bolt in line, or to extend the effective reach of a single thread. Manufactured under the AM Steel brand to DIN 6334, these nuts (widely known as coupling nuts, connector nuts, or extension nuts) provide a strong, in-line threaded joint – the extra body length giving generous thread engagement on both mating parts for a secure, load-bearing connection.

Because they join and extend threads rather than simply clamp, AM Steel long nuts are the go-to fitting wherever a threaded run must be lengthened or two threaded components brought together – most commonly joining threaded rod for suspending pipework, cable tray, ducting, and strut channel from soffits, and extending anchor studs, tie rods, and fixings to reach a required length. The long hex body allows a spanner or socket to drive it, and the full-depth thread ensures each rod or stud engages deeply for maximum holding strength. They’re available in standard hex-bodied form and can be used to connect same-size threads on each end. AM Steel long nuts are available in carbon and high-tensile steel (zinc-plated or galvanized) in property classes suited to the load, and in stainless steel (A2/304 and A4/316, the latter considered marine-grade) for outdoor, wet, and coastal environments where corrosion resistance is critical.

Whether you’re joining threaded rod for services suspension, extending anchor studs to length, connecting tie rods, or handling any application that needs threads lengthened or brought together, AM Steel long nuts deliver the deep thread engagement, in-line strength, and consistent quality needed for reliable threaded connections and extensions. As with all AM Steel products, this long nut is available in a range of metric sizes (typically M6 to M24 per DIN 6334), in multiple grades, materials, and finishes to suit both industrial-grade and everyday fastening needs.

Key features:

• Extended hex body with a deep, full-length internal thread for joining and extending threads
• Connects two threaded rods, studs, or bolts end-to-end in a strong in-line joint
• Generous thread engagement on both mating parts for secure, load-bearing connection
• Widely used to join threaded rod for services suspension and to extend anchor studs
• Manufactured to DIN 6334 dimensional standards
• Available in carbon steel (zinc-plated, galvanized) and stainless steel (A2/304, A4/316)
• Backed by the quality assurance of AM Steel

Ideal For

AM Steel Long Nuts are ideal for:

• Mechanical and electrical trades joining threaded rod to suspend pipework, cable tray, and ducting from soffits
• Extending anchor studs, drop-in anchor rods, and fixings to reach a required length
• Connecting tie rods, tension rods, and threaded shafts in an in-line joint
• Strut-channel and framing installs needing lengthened or coupled threaded rod
• General construction and machinery assembly wherever a thread must be extended or two threads joined

Choosing the Right Long Nut

Selecting the correct long nut from the AM Steel range depends on several factors:

• Material – Stainless steel (A2/304 or A4/316) for outdoor, wet, or corrosion-prone applications; carbon or high-tensile steel (zinc-plated or galvanized) for general and structural work.
• Strength Class – Match the nut’s property class to the grade of the rods or studs being joined so the coupling is never the weak point.
• Thread Size & Pitch – Choose the diameter and pitch to match the threaded rod, stud, or bolt exactly; both ends must share the same thread unless a reducing type is specified.
• Thread Engagement – Ensure each rod or stud engages far enough into the nut (ideally to or near the centre) for full rated strength; the long body allows deep engagement on both sides.
• Length – Select the nut length to give sufficient engagement for the load while suiting the reach or gap being bridged.
• Finish – Zinc-plated for basic indoor protection, hot-dip galvanized for outdoor durability, stainless for maximum corrosion resistance.

Strategies to Choose the Right Product

• Engage both threads deeply – For full strength, each rod or stud should thread well into the nut, ideally meeting at or near the centre; a sight hole (where fitted) helps confirm both ends are engaged.
• Match the class to the rods – Pair the nut’s property class to the grade of the threaded rod or stud so the joint reaches the intended strength.
• Match thread size and pitch on both ends – Confirm both diameter and pitch match the mating threads; mismatched pitch will cross-thread or fail to engage.
• Match material to environment – Use stainless steel (A2/304 or A4/316) for outdoor, wet, or coastal work; zinc-plated or galvanized steel for general dry or exterior construction.
• Guard against galling in stainless – When coupling stainless rods with a stainless long nut, use an anti-seize lubricant to prevent thread galling and seizing.
• Prioritize certified standards – Look for DIN 6334 compliance for guaranteed dimensional consistency.

Mechanical Properties

AM Steel Long Nuts are manufactured to meet recognized mechanical and dimensional standards, ensuring reliability across threaded-rod joining, stud-extension, and general connection applications:

These mechanical ratings confirm that AM Steel long nuts deliver deep-engagement, in-line threaded connection and extension suited to services suspension, stud extension, and general joining – engage both threads deeply and match the nut class to the rods for a secure, full-strength joint.

Frequently Asked Questions (FAQs)

1. What is a long nut used for?
A long nut is used to join two threaded rods, studs, or bolts end-to-end, or to extend a single thread over a longer reach – most commonly to couple threaded rod for suspending services or to extend anchor studs to length.

2. Why is it also called a coupling nut?
“Coupling nut,” “connector nut,” and “extension nut” are common alternate names, all describing the long nut’s function of coupling two threaded parts together or extending a thread in line.

3. How does a long nut work?
Its extended body has a deep internal thread; a threaded rod or stud is screwed into each end so both engage deeply and meet in line, creating a strong, load-bearing coupled joint that a standard nut is too short to make.

4. Are AM Steel long nuts different from generic ones?
AM Steel long nuts are manufactured and quality-tested under the AM Steel brand, ensuring consistent thread quality, body length, and finish across every batch, per DIN 6334.

5. How far should the rods thread into a long nut?
For full strength each rod or stud should engage well into the nut, ideally meeting at or near the centre; where a sight hole is provided, it lets you confirm both ends are fully engaged.

6. What sizes do long nuts come in?
AM Steel long nuts are available in a range of sizes, typically M6 to M24 in metric, per DIN 6334.

7. Can a long nut join two different thread sizes?
Standard long nuts have the same thread throughout for joining matching threads; to connect two different sizes you need a reducing (stepped) coupling nut specified for those two threads.

8. Are long nuts corrosion-resistant?
Yes, especially AM Steel stainless steel versions (A2/304 or A4/316), which resist rust in outdoor, wet, or coastal environments; hot-dip galvanized and zinc-plated steel offer protection for general and dry conditions.

9. Are long nuts used with threaded rod?
Yes – joining and extending threaded rod is one of their most common uses, particularly for suspending pipework, cable tray, and ducting from concrete soffits in mechanical and electrical installations.

10. What property class should my long nut be?
Match the long nut’s property class to the grade of the threaded rod or stud being joined, so the coupling is never the weak point in the connection.

11. Can long nuts be reused?
Yes, in most applications they can be unscrewed and reused provided the threads are undamaged and clean; nuts with damaged or corroded threads should be replaced.

12. What’s the difference between a long nut and a standard hex nut?
A standard hex nut is short and used to clamp a joint, while a long nut has an extended body with a deep thread specifically for joining two threaded parts end-to-end or extending a thread – a connector rather than a clamping nut.

13. What’s the difference between A2 and A4 stainless steel long nuts?
A2 (304) stainless offers good general corrosion resistance for most outdoor use, while A4 (316), considered marine-grade, provides superior resistance to chlorides and coastal or chemical environments.
