Description

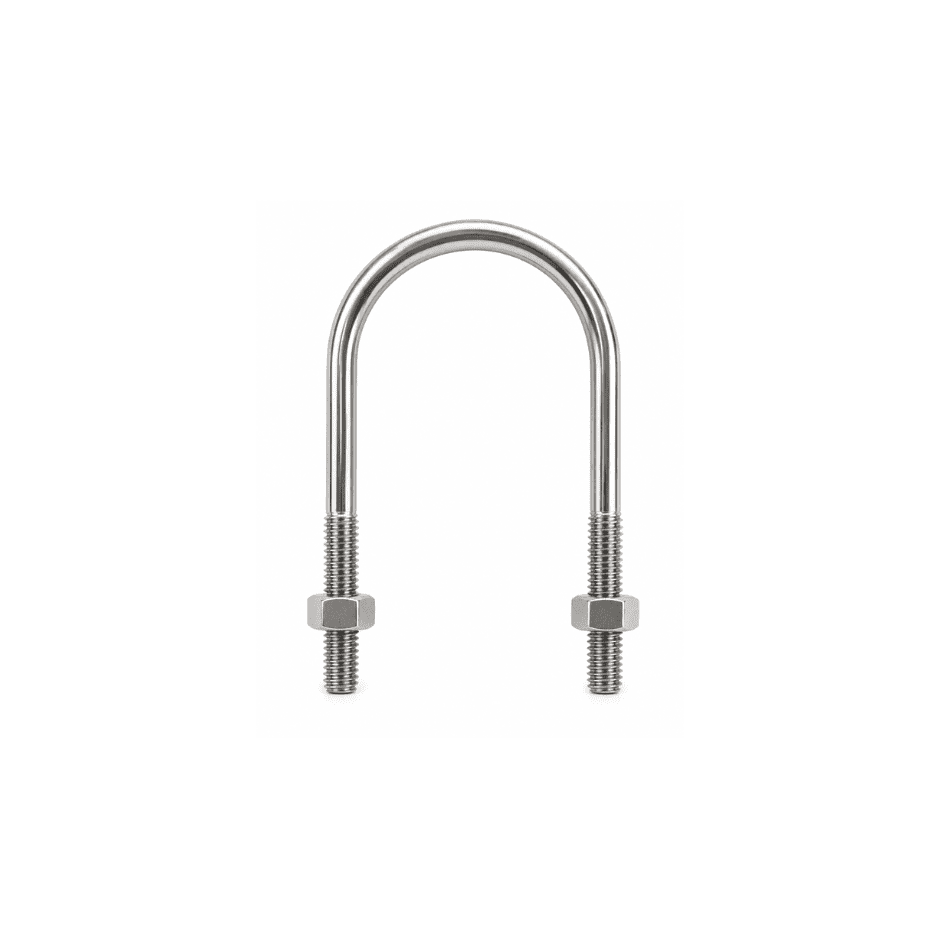

AM Steel U-Bolts are U-shaped fasteners with threaded legs on both ends, used together with a bearing plate (saddle) and two nuts to clamp round or square objects – pipes, rods, tubes, axles, and leaf springs – firmly to a flat mounting surface. Manufactured under the AM Steel brand, these U-bolts come in round bend, square bend, and semi-round (long tangent) configurations, each suited to a different clamping geometry: round bend U-bolts saddle pipe and round bar, square bend U-bolts grip flat or square stock such as trailer axles and structural channel, and semi-round bend U-bolts clamp pipe against a flat backing plate.

In leaf spring and axle applications, AM Steel U-bolts provide the critical clamping force that holds the spring pack, top plate, axle seat, and axle firmly together – a safety-critical function, since inadequate clamping is a leading cause of leaf spring failure. For this reason, AM Steel offers forged Grade 5 and Grade 8 U-bolts for suspension use, following the same tensile strength standards used across the industry (Grade 5 at 120,000 psi, Grade 8 at 150,000 psi, per ASTM A449 proof loads).

For pipe support, HVAC, and structural applications, AM Steel U-bolts are available hot-dip galvanized for reliable outdoor corrosion resistance, or in stainless steel (302/304/316) for food processing, chemical, marine, and high-temperature exhaust clamp applications. As with all AM Steel products, this U-bolt is available in metric and imperial (SAE) sizing, in multiple bend types, grades, and finishes to suit both industrial-grade and everyday clamping needs.

Key features:

• Round bend, square bend, and semi-round bend configurations for different clamping geometries
• Forged Grade 5 and Grade 8 U-bolts available for safety-critical suspension and axle use
• Hot-dip galvanized and stainless steel U-bolt (302/304/316) options for corrosion resistance
• Suitable for pipe support, exhaust clamping, solar mounting, and structural bracing
• Available in metric and SAE imperial sizing
• Backed by the quality assurance of AM Steel

Note: This product, along with all other products in this catalog, is manufactured and supplied by AM Steel, a trusted name in industrial-grade fasteners and steel components.

Safety note: Leaf spring and axle U-bolts are safety-critical fasteners. They should always be replaced (not reused) whenever a spring pack is disassembled, tightened to the manufacturer’s specified torque, and re-torqued after the first 500–1,000 miles of use to account for spring settling.

Ideal For

AM Steel U-Bolts are ideal for:

• Automotive and trailer technicians clamping leaf springs to axles with forged Grade 5/8 suspension U-bolts
• Plumbers and HVAC contractors securing pipes and conduit to structural beams, hangers, and wall brackets
• Exhaust and muffler shops clamping high-temperature exhaust pipes with stainless steel U-bolt clamps
• Solar installers securing mounting rails to roof purlins and structural steel
• Industrial and marine facilities using stainless steel U-bolts for corrosive, food-grade, or chemical environments

Choosing the Right U-Bolt

Selecting the correct U-bolt from the AM Steel range depends on several factors:

1. Bend Type – Round bend for pipe and round bar; square bend for trailer axles, leaf springs, and square/flat stock; semi-round for pipe clamped against a flat backing plate.
2. Material – Stainless steel (304/316) for corrosive, marine, food-grade, or high-temperature exhaust applications; hot-dip galvanized for outdoor pipe racks; carbon steel for general indoor use.
3. Grade – Grade 5 or Grade 8 forged U-bolts for safety-critical leaf spring and axle applications; standard grades for non-critical pipe support.
4. Sizing – Match rod diameter (A), inside diameter (B), inside length (C), and thread length (D) precisely to the pipe, axle, or object being clamped – inside diameter must equal the actual outside diameter of the object, not its nominal size.
5. Bearing Plate Requirement – Use a bearing plate (saddle) with pipe clamps and structural applications to distribute load and prevent crushing; light-duty cable applications may not require one.
6. Finish for Environment – Choose hot-dip galvanized or stainless steel for outdoor exposure, since thin electro-zinc coatings offer only limited salt-spray resistance.

Strategies to Choose the Right Product

• Match bend type to the object being clamped – Use round bend for pipe (Schedule 40 and similar), square bend for trailer axles and square tubing, to avoid point-loading and premature fatigue cracking.
• Never reuse safety-critical U-bolts – Always replace leaf spring and axle U-bolts whenever the spring pack is disassembled, since removal releases their pre-stress and permanently deforms the bolt.
• Check material against environment – Choose stainless steel or hot-dip galvanized U-bolts for outdoor, marine, or high-temperature exhaust applications; avoid thin electro-zinc plating outdoors.
• Follow torque specifications, not just “tight” – U-bolt clamping force depends heavily on friction and lubrication, so use manufacturer torque specs and lubricated threads rather than estimating by feel.
• Buy in matched sets – Purchase U-bolts with compatible bearing plates, deep nuts, and hardened washers sized to the rod diameter for proper clamping.
• Consider bulk vs. individual packs – Bulk packs suit fleet maintenance or large pipe-support installations; smaller packs suit individual repairs or single-axle replacements.

Mechanical Properties

AM Steel U-Bolts are manufactured to meet recognized mechanical performance standards, ensuring reliability across automotive, structural, and pipe support applications:

These mechanical ratings confirm that AM Steel U-bolts meet standard forged-fastener strength requirements – for safety-critical leaf spring and axle applications, always confirm the correct grade (5 or 8) and follow manufacturer torque specifications.

Frequently Asked Questions (FAQs)

1. What is a U-bolt used for? A U-bolt is used to clamp round or square objects – such as pipes, rods, axles, and leaf springs – to a flat surface or bracket, using a bearing plate and two nuts to complete the assembly.
2. What’s the difference between a round bend and square bend U-bolt? A round bend U-bolt is designed to saddle pipe or round bar, distributing clamping force evenly around the circumference, while a square bend U-bolt has a flat inside face designed to grip square or rectangular stock, such as trailer axles, without rocking.
3. Are AM Steel U-bolts different from generic U-bolts? AM Steel U-bolts are manufactured and quality-tested under the AM Steel brand, ensuring consistent bend radius, thread quality, and grade compliance across every batch.
4. What’s the difference between a U-bolt and a J-bolt? A U-bolt has two threaded legs and requires a bearing plate and two nuts, providing more clamping force for structural applications, while a J-bolt has only one threaded leg and hooks around the object, suited to lighter-duty attachment where access is limited to one side.
5. Can leaf spring U-bolts be reused? No – leaf spring and axle U-bolts are pre-stressed during installation, and once removed, that pre-stress is lost and the bolt is permanently deformed; new U-bolts should always be installed when reassembling a leaf spring pack.
6. What grade of U-bolt should I use for leaf springs? Forged Grade 5 U-bolts are typically used for smaller diameters (9/16″ and below), while Grade 8 is used for 5/8″ diameter and larger; Grade 8 is the safest default choice if the original specification is unknown.
7. Are U-bolts corrosion-resistant? Yes, especially AM Steel stainless steel U-bolts (304/316), which resist rust in marine, food-processing, and high-temperature exhaust applications; hot-dip galvanized U-bolts are the standard for outdoor pipe racks.
8. Do I need a bearing plate with a U-bolt? Yes, for pipe clamps and structural applications, a bearing plate (saddle) distributes clamping load and prevents the pipe from being crushed; some light-duty applications, like securing cables, may not require one.
9. What size U-bolt do I need for my pipe? Measure the actual outside diameter (OD) of the pipe, not its nominal size, and select a U-bolt with a matching inside bend diameter – for example, a 2-inch nominal pipe has an actual OD of 60.3mm and requires a U-bolt sized accordingly.
10. How should U-bolts be torqued? U-bolts should be tightened alternately (not one leg fully before the other) to the manufacturer’s specified torque, using lubricated threads, since friction significantly affects the actual clamping force achieved for a given torque reading.
11. What’s the difference between electro-zinc plated and hot-dip galvanized U-bolts? Electro-zinc plating is thin (5–12 microns) and offers limited outdoor salt-spray resistance, while hot-dip galvanizing provides a much thicker, more durable coating suited to long-term outdoor exposure.
12. Can U-bolts be used for exhaust systems? Yes, stainless steel (304/316) U-bolts are commonly used as exhaust clamps, since they withstand the high temperatures (up to 700°C) and corrosive conditions found in diesel and automotive exhaust systems.
13. What is the torque rating for U-bolts? Torque ratings for U-bolts are generally lower than standard bolts of the same diameter due to the stress concentration at the bend – always use the vehicle or equipment manufacturer’s specified torque, or refer to the AM Steel torque chart if manufacturer specs are unavailable.
