Description

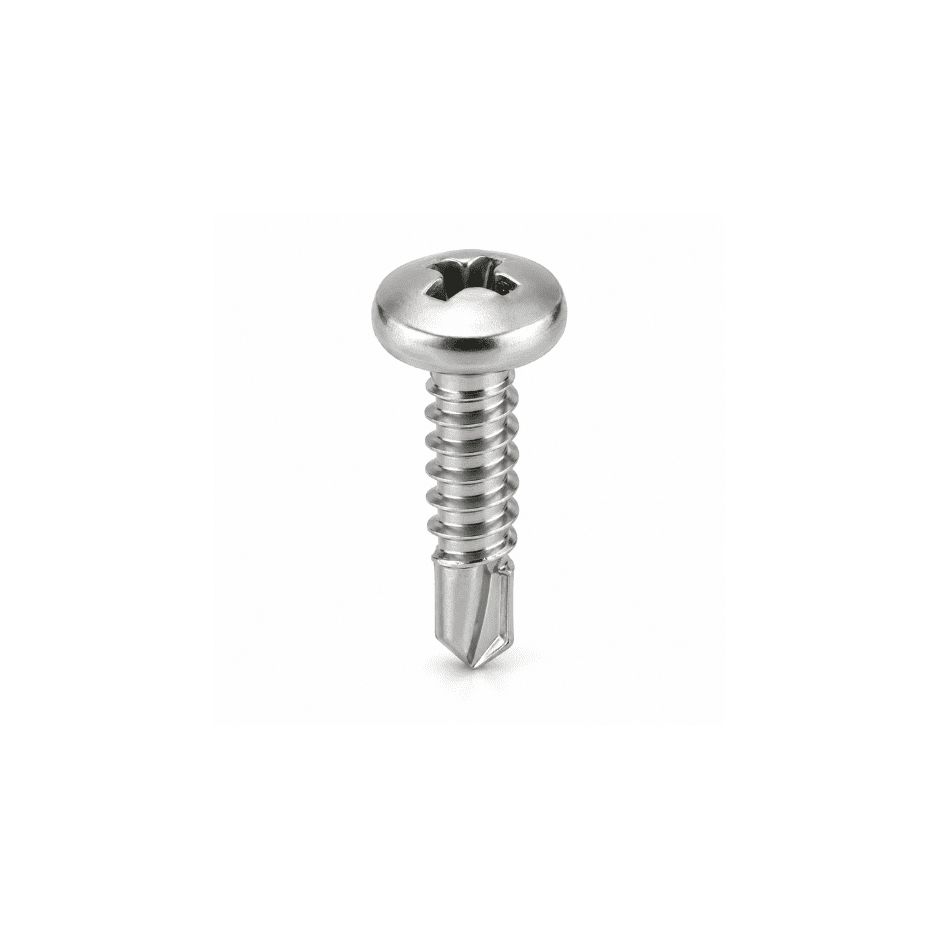

AM Steel Pan Head Self Drilling Screws combine a low, rounded pan head with an integral drill-point tip that bores its own hole and taps its own thread in one continuous action – fastening sheet and light structural steel without the separate drill-and-tap step and without a pre-drilled pilot hole. Manufactured under the AM Steel brand to DIN 7504 N (Phillips/cross-recess) and related standards, these fasteners (widely known as Tek screws or self-drillers) are the go-to fixing wherever fast, low-profile metal fastening is needed and the head must sit neatly against the surface.

Because the drill point cuts through steel before the thread engages, AM Steel pan head self drilling screws are well suited to metal-to-metal fixing, light steel framing, drywall and partition track, ducting, and general sheet-metal assembly. The pan head provides a broad, flat bearing surface that spreads load and sits low against the sheet without needing a countersink, while the cross-recess or star drive gives fast, cam-out-resistant engagement for high-speed power driving – making these a workshop and site favourite for volume fixing. Self-drilling screws are specified by drill-point capacity (point sizes such as No. 2 or 3), each rated for a maximum total metal thickness it can drill through, so the point must be matched to the combined gauge of the steel being fastened. AM Steel pan head self drilling screws are available in case-hardened carbon steel (zinc-plated) for general steel fixing, and in bi-metal or stainless steel (A2/304 and A4/316, the latter considered marine-grade) for outdoor, humid, and coastal environments where corrosion resistance is critical.

Whether you’re assembling light steel framing, fixing drywall track, securing ductwork, or handling any metal-to-metal connection that demands a fast, low-profile one-step fixing, AM Steel pan head self drilling screws deliver the drill-and-fasten speed, broad head bearing, and consistent quality needed for sheet and light structural steel connections. As with all AM Steel products, this self drilling screw is available in a range of sizes (typically No. 6 to No. 14 / approx. 3.5mm to 6.3mm diameter, lengths from 13mm to 50mm), in multiple drill-point capacities, drives, materials, and finishes to suit both industrial-grade and everyday fastening needs.

Key features:

• Integral drill-point tip that drills its own hole and forms its own thread in one action — no pilot hole needed
• Low, rounded pan head with a broad flat bearing surface that spreads load without a countersink
• Phillips (cross-recess) or star (Torx) drive for fast, cam-out-resistant power driving
• Manufactured to DIN 7504 N / M dimensional standards
• Drill-point capacities (e.g. No. 2, 3) matched to total metal thickness for reliable drilling
• Available in zinc-plated carbon steel, bi-metal, and stainless steel (A2/304, A4/316)
• Backed by the quality assurance of AM Steel

Ideal For

AM Steel Pan Head Self Drilling Screws are ideal for:

• Steel-framing and drywall-track fabricators making fast, low-profile metal-to-metal connections in light structural steel
• Sheet-metal fabricators fixing panels, brackets, and covers without pre-drilling
• HVAC and ductwork installers securing sheet, flanges, and fittings in a single driving action
• Partition, ceiling, and interior-fit-out trades fixing track, channel, and framing at high volume
• Maintenance and general trades needing quick, reliable low-profile metal fastening with a power driver

Choosing the Right Pan Head Self Drilling Screw

Selecting the correct pan head self drilling screw from the AM Steel range depends on several factors:

• Material – Stainless steel (A2/304 or A4/316) or bi-metal for outdoor, humid, and coastal applications; zinc-plated carbon steel for general indoor and dry metal fixing.
• Drill-Point Capacity – Match the point number (e.g. No. 2, 3) to the total combined thickness of steel being fastened; too small a point won’t drill through, too large wastes drilling travel.
• Size & Length – Choose a diameter and length that fully penetrates and grips the base steel while leaving adequate thread engagement beyond the fastened material.
• Drive Type – Phillips (cross-recess) for familiar, fast driving; star (Torx) for maximum cam-out resistance during high-torque power driving.
• Head Bearing – Confirm the pan head suits the finish and load-spread required; use a flanged or washer head where extra bearing surface is needed on soft or slotted material.
• Corrosion Environment – For humid, wet, or coastal exposure, prioritize stainless or bi-metal to resist rust and galvanic issues.

Strategies to Choose the Right Product

• Match the drill point to the steel thickness – The point number defines the maximum metal thickness the screw can drill; matching it correctly is the single most important factor for reliable self-drilling.
• Pick the drive for the tool – Star (Torx) resists cam-out best for high-torque power driving; Phillips suits familiar, fast general assembly.
• Match material to environment – Use stainless steel (A2/304 or A4/316) or bi-metal for outdoor, humid, or coastal work; zinc-plated carbon steel for general dry, indoor fixing.
• Drive at the right speed – Use steady, firm pressure and an appropriate driver speed so the point drills fully before the thread engages; excessive speed can burn the point or strip the thread.
• Prioritize certified standards – Look for DIN 7504 N / M compliance for guaranteed dimensional and drilling consistency.
• Consider bulk vs. individual packs – Bulk packs suit framing, drywall, and production steel fixing; smaller packs suit repairs, servicing, or single jobs.

Mechanical Properties

AM Steel Pan Head Self Drilling Screws are manufactured to meet recognized mechanical and dimensional standards, ensuring reliability across steel-framing, drywall-track, and sheet-metal fixing applications:

These mechanical ratings confirm that AM Steel pan head self drilling screws deliver fast, one-step drilling and fastening suited to steel-framing, drywall-track, and sheet-metal applications – match the drill-point capacity to the total metal thickness for reliable drilling and a secure fix.

Frequently Asked Questions (FAQs)

1. What is a pan head self drilling screw used for?
It’s used for fast, low-profile metal-to-metal fixing – steel framing, drywall track, ductwork, and sheet metal – drilling its own hole and forming its own thread in one action, with a broad pan head that sits neatly against the surface.

2. What does “self drilling” mean?
Self drilling means the screw has an integral drill-point tip that bores its own hole through metal and then taps its own thread in a single continuous driving action, so no separate pilot hole is required.

3. What’s the difference between a self drilling and a self tapping screw?
A self drilling (Tek) screw has a drill-point tip that bores its own hole and taps the thread in one step with no pilot hole, while a self tapping screw needs a pre-made pilot or punched hole and forms the thread only.

4. Are AM Steel pan head self drilling screws different from generic Tek screws?
AM Steel self drilling screws are manufactured and quality-tested under the AM Steel brand, ensuring consistent drill-point performance, thread quality, head dimensions, and finish across every batch, per DIN 7504 N / M.

5. Why choose a pan head over a hex head self drilling screw?

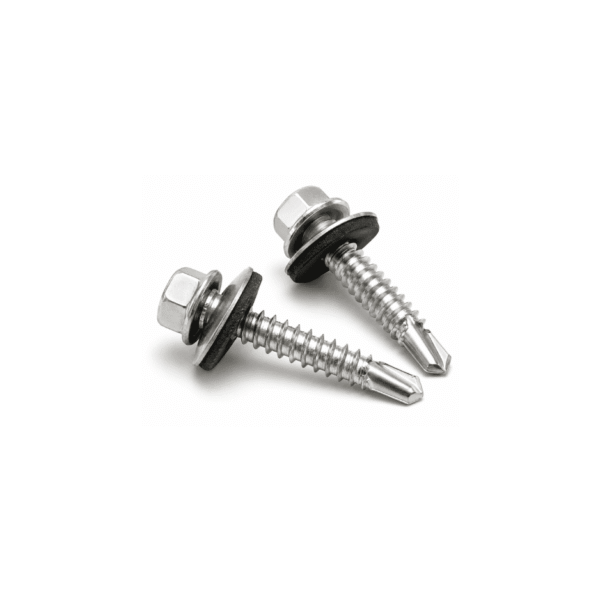

A pan head sits low and neat with a broad flat bearing surface and an internal Phillips or star drive – ideal for a flush-ish, snag-free finish – whereas a hex head allows higher driving torque via a socket and is favoured for heavier roofing and cladding fixings.

6. What does the drill-point number (No. 2, 3) mean?
The point number indicates the screw’s drilling capacity – the maximum total thickness of steel it can drill through; a higher number generally drills through thicker combined metal, so match the point to the steel being fastened.

7. What sizes do pan head self drilling screws come in?
AM Steel pan head self drilling screws are available in a range of sizes, typically No. 6 to No. 14 (approx. 3.5mm to 6.3mm in diameter), with lengths from 13mm to 50mm.

8. Do I need a pilot hole for a pan head self drilling screw?
No – its integral drill tip creates the hole as it’s driven, eliminating the separate drilling step; just apply steady pressure so the point drills fully before the thread engages.

9. Are pan head self drilling screws corrosion-resistant?
Yes, especially AM Steel stainless steel (A2/304 or A4/316) and bi-metal versions, which resist rust in outdoor, humid, or coastal environments; zinc-plated carbon steel offers basic protection for indoor and dry conditions.

10. What tool do I need to install a pan head self drilling screw?
A Phillips or star (Torx) bit matching the recess — fitted to a drill/driver or impact driver – is used; seat the bit fully and apply firm, steady pressure so the drill point cuts before the thread engages.

11. What is a bi-metal self drilling screw?
A bi-metal screw combines a hardened carbon-steel drill point (for reliable drilling into steel) with a stainless-steel body (for corrosion resistance), giving both drilling ability and rust protection in outdoor use.

12. Can pan head self drilling screws be reused?
They can often be reinstalled into the same formed thread if it isn’t stripped, though repeated removal weakens the hold; for a loose hole, a slightly larger-diameter screw restores grip.

13. What’s the difference between A2 and A4 stainless steel self drilling screws?
A2 (304) stainless offers good general corrosion resistance for most indoor and outdoor use, while A4 (316), considered marine-grade, provides superior resistance to chlorides and coastal or chemical environments.
